TP-LINK Technologies
TP-Link TL-SM5110-LR V1 SFP+ transceiver modul 10 Gigabit Ethernet
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

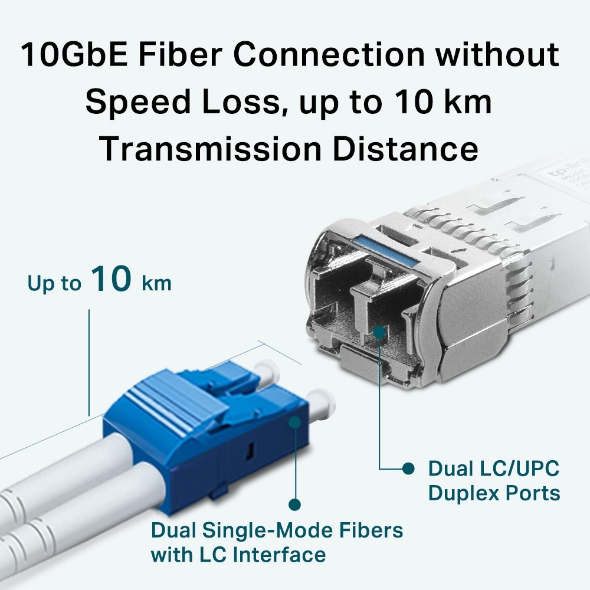

TP-Link Omada 10Gbase-LR SFP+ LC Transceiver, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, LR
Specifikationer
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | TP-Link |
| Compatible products | Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Input voltage | 3.3 V |
| Certification | FCC, CE |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 56.7 mm |
| Depth | 13.9 mm |
| Height | 10.3 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Harmonized System (HS) code | 85369010 |
