TP-LINK Technologies

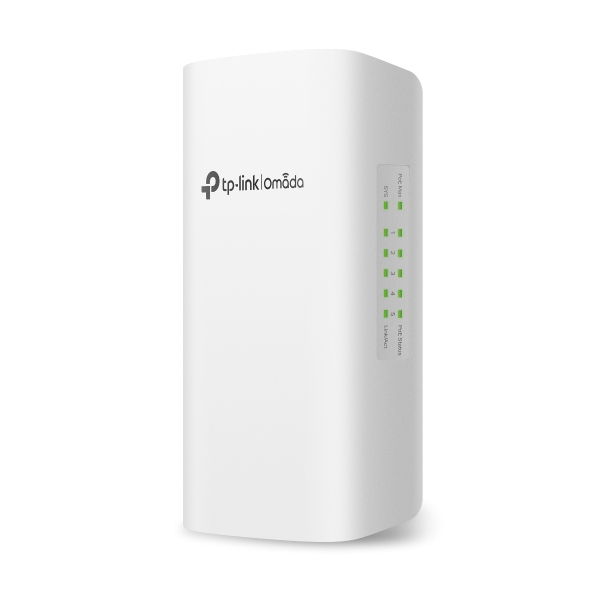

TP-Link TP-Link Omada Switch 5x GE SG2005P-PD
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Desktop
Specifikationer
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 4 |
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 32 |
| IPv6 routes | 32 |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 10 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet forwarding rate (1 Gbps) | 7440 pps |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 32 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Multicast support | Yes |
| Multicast MAC address table | 8000 entries |
| IPv4 multicast entries | 511 |
| IPv6 multicast entries | 511 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert |
| Rack mounting | No |
| Stackable | No |
| Form factor | Desktop |
| Product colour | White |
| LED indicators | Yes |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power consumption (typical) | 71.5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 64 W |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 243.99 BTU/h |
| Width | 170 mm |
| Depth | 100 mm |
