Accueil · Réseau · TP-LINK SG3218XP-M2 Omada 16-Port 10GE SFP+ L2+ managed Switch 8x 2.5G PoE+ 8x 2.5G Non-PoE 2x 10G SFP+ 1x RJ45/Micro-USB Console
TP-LINK Technologies

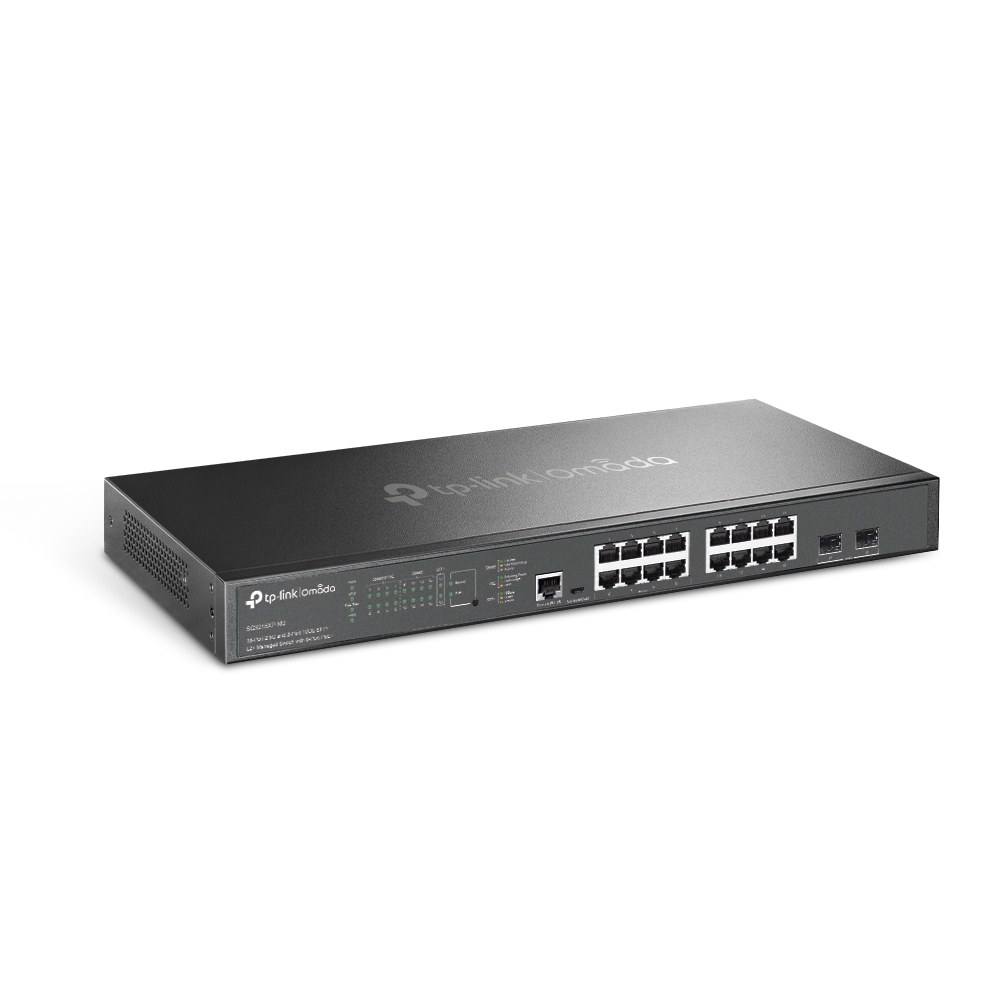

TP-LINK SG3218XP-M2 Omada 16-Port 10GE SFP+ L2+ managed Switch 8x 2.5G PoE+ 8x 2.5G Non-PoE 2x 10G SFP+ 1x RJ45/Micro-USB Console
Réf. · EAN
Prix à la connexion
prix selon votre accord
En stock
Livraison 1–2 jours ouvrés · commande avant 15h00
Description
TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, Managed, L2+, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Spécifications
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Switching capacity | 120 Gbit/s |
| Forwarding rate | 89.28 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Number of static routes | 48 |
| Number of IP interfaces | 32 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Power source | AC |
