iiyama Zubehör SDM SlotPC Modul SDM51201BC-1L W11IoT
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

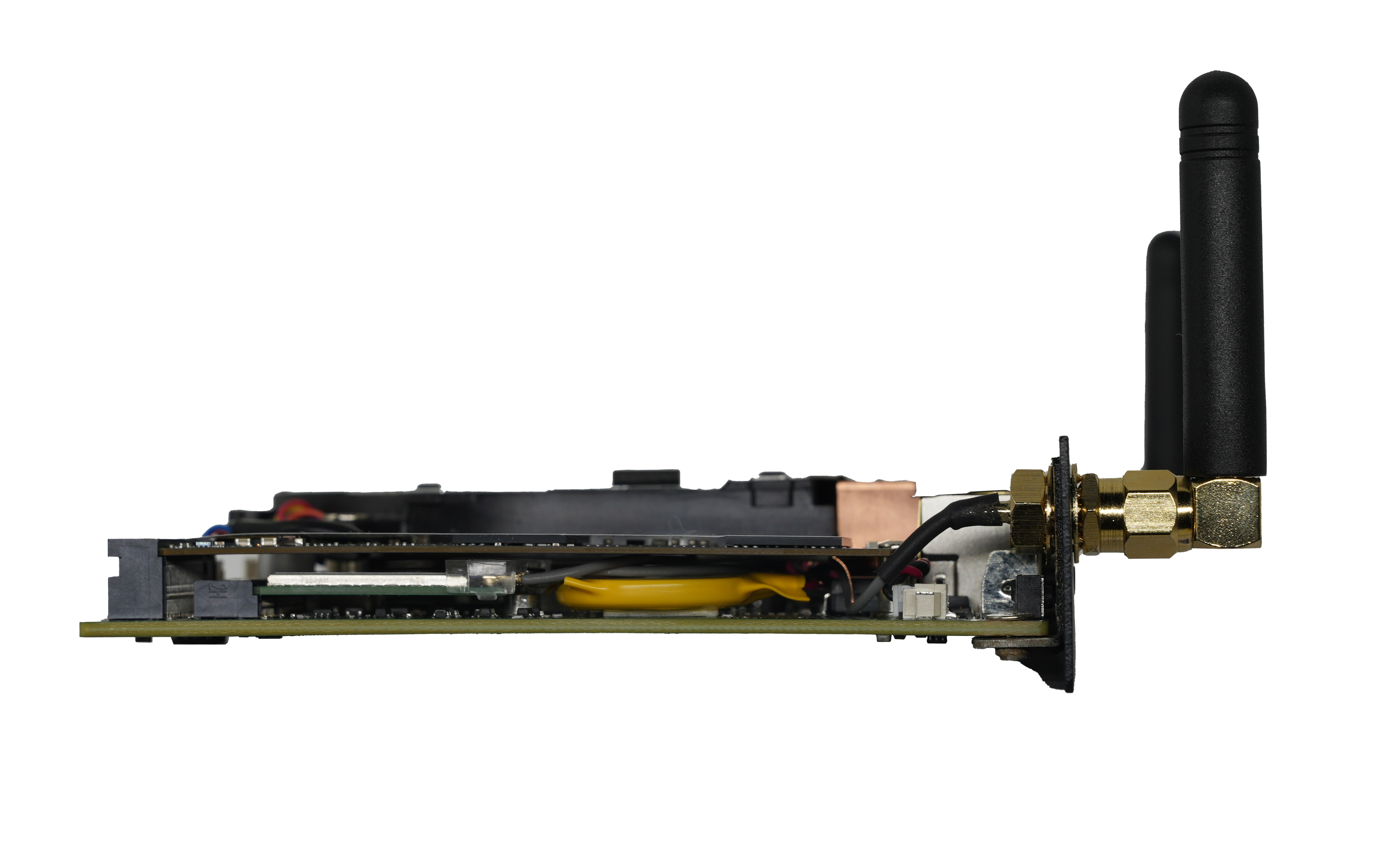

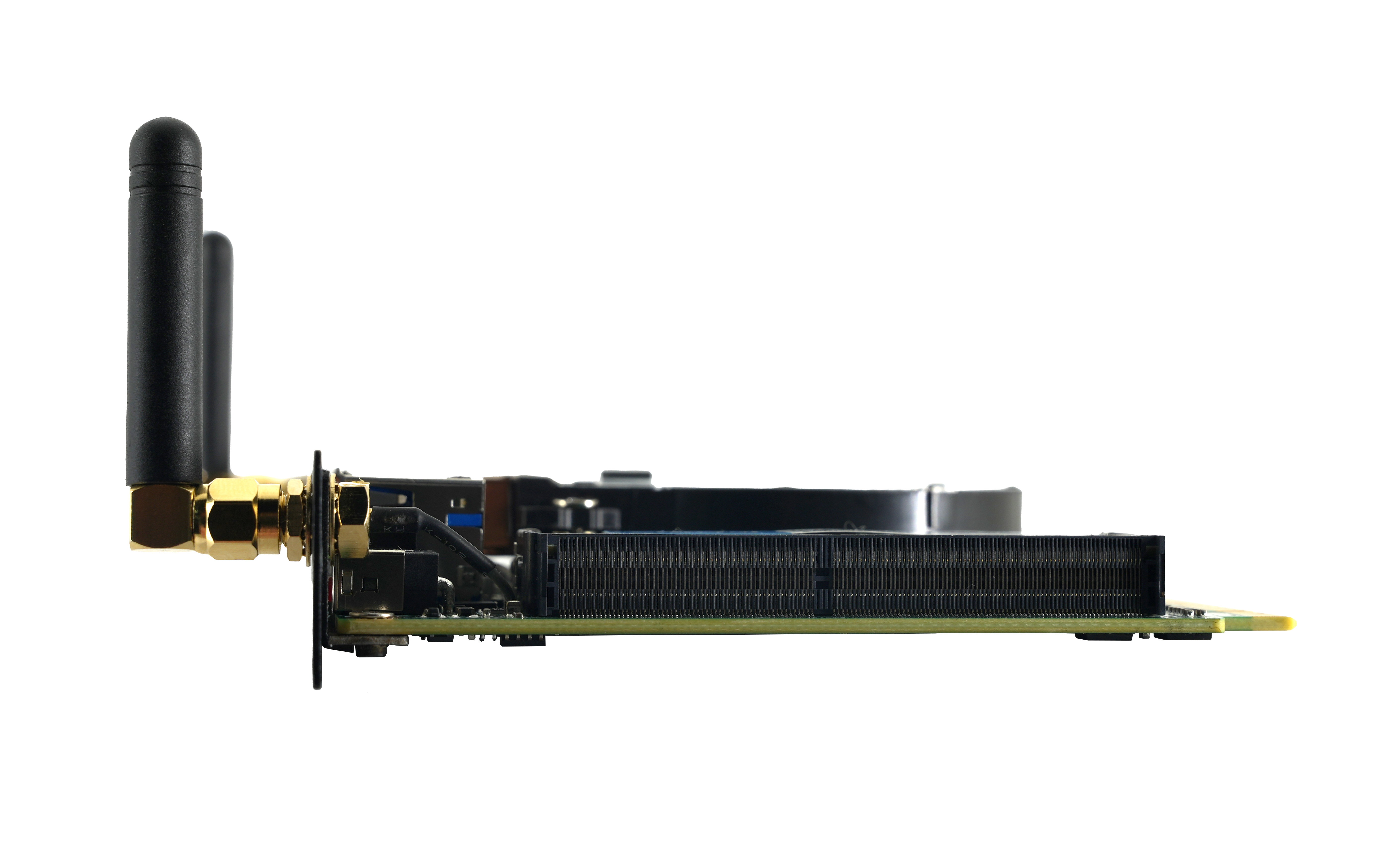

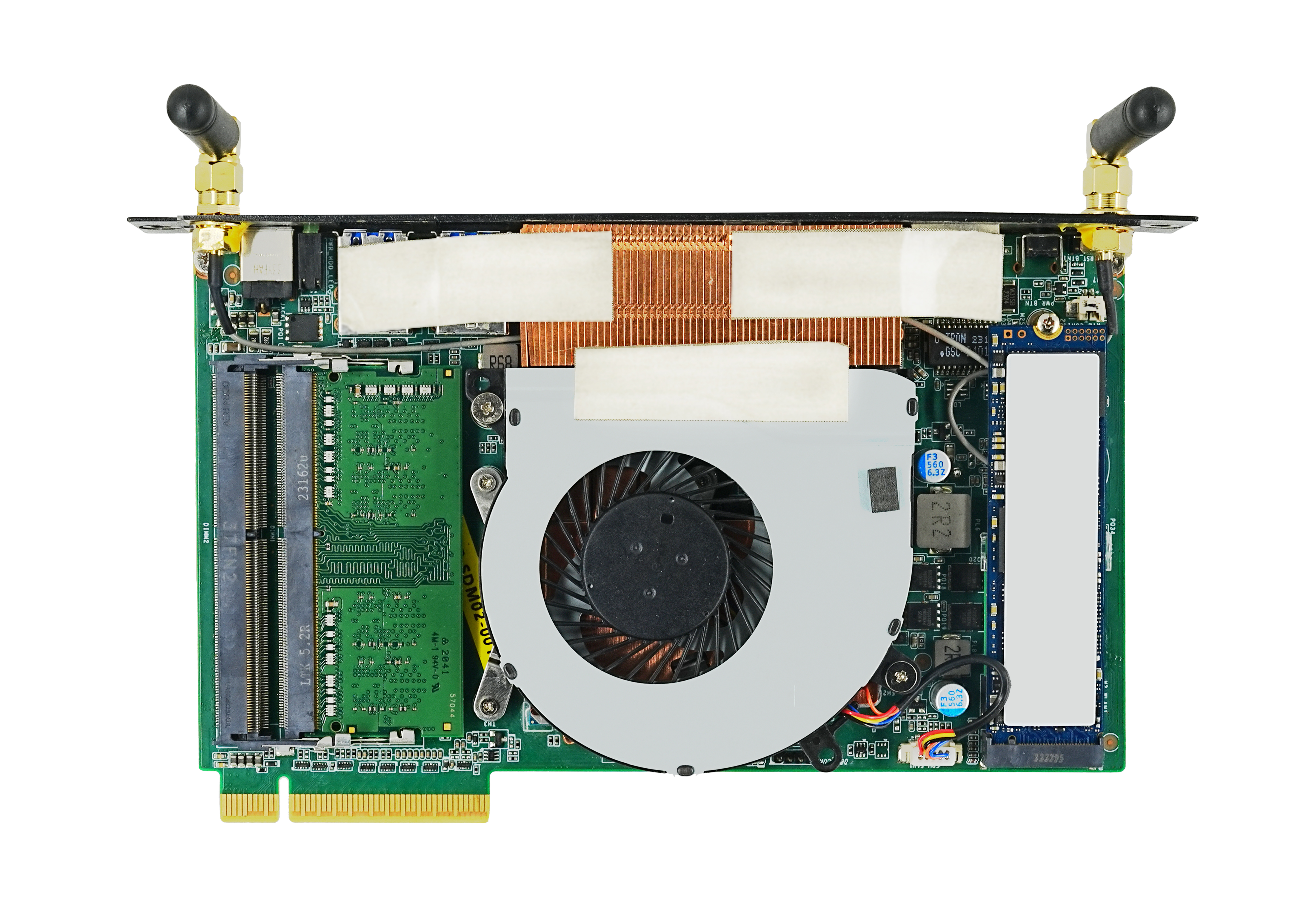

iiyama SDM51201BC-1L, Intel® Core™ i5, i5-12450H, 8 GB, 256 GB, Windows 11 IoT Enterprise, 64-bit
Specifikationer
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-12450H |
| Copilot+ PC | No |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
| Discrete GPU manufacturer | Intel |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| Power consumption (typical) | 72 W |
| Power consumption (standby) | 0.5 W |
| Chassis type | Slot-in PC |
| Product colour | Black |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 IoT Enterprise |
| Compatible operating systems | Windows 11 loT Enterprise (SAC) 64Bit |
| Display included | No |
| Audio chip | Realtek ALC245 |
| Audio system | High Definition Audio |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 110 mm |
| Depth | 195 mm |
| Height | 25 mm |
