TP-LINK Technologies

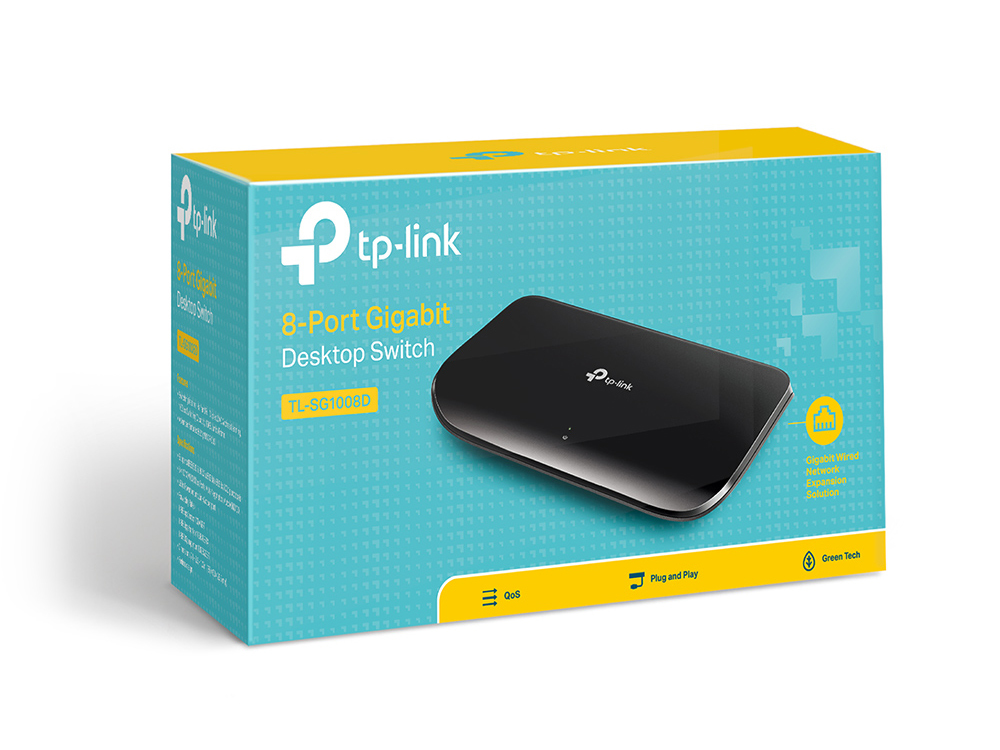

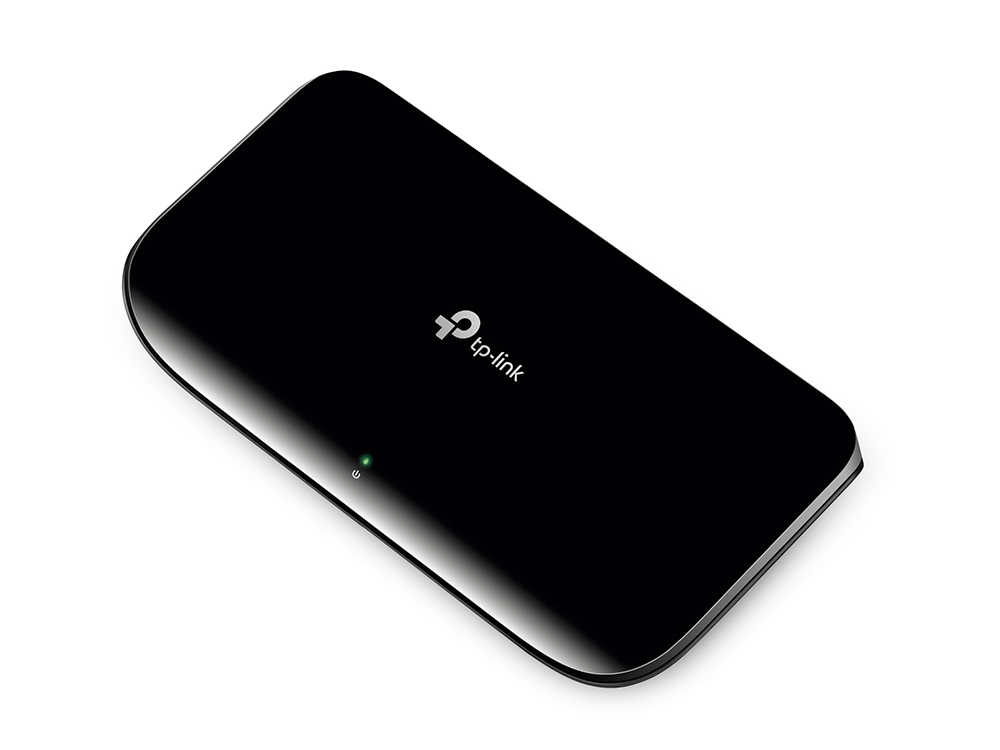

TP-Link TL-SG1008D Desktop Switch 8-porte Gigabit
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
TP-Link 8-Port Gigabit Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Specifikationer
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Auto-negotiation | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 2 MB |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Wall mountable | Yes |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (typical) | 4.63 W |
| Power consumption (max) | 3.53 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 15.8 BTU/h |
| Width | 180 mm |
| Depth | 90 mm |
| Height | 25.5 mm |
| Cables included | AC |
| User guide | Yes |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 110 mm |
| Package depth | 185 mm |
| Package height | 85 mm |
| Package weight | 300 g |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
