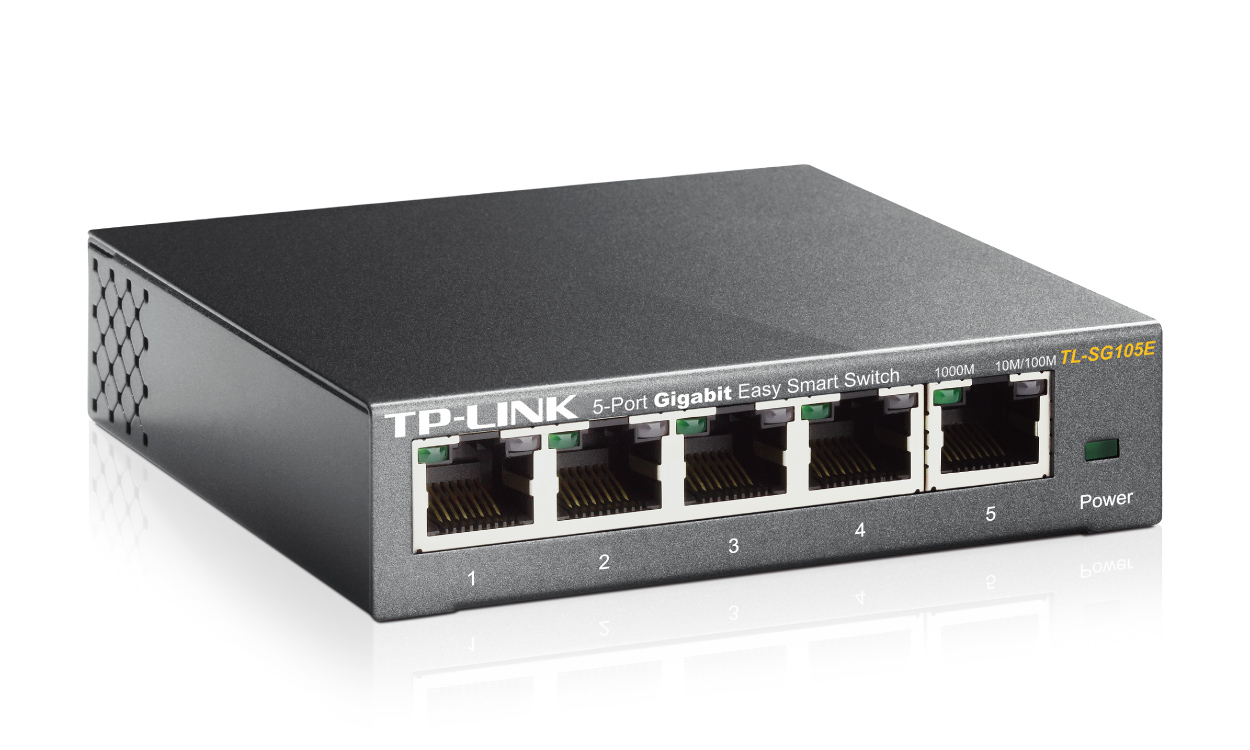

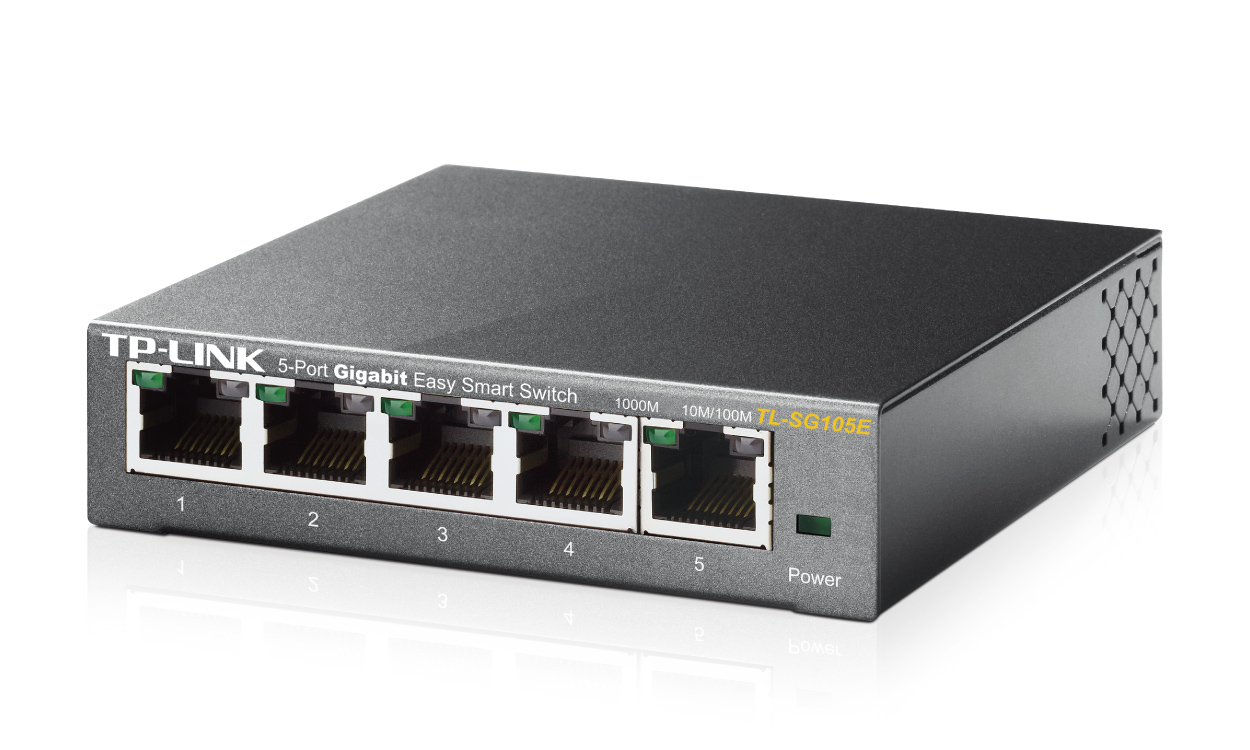

TP-Link TL-SG105E | Easy Smart Switch | 5x Port | 1Gbit/s
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description
TP-Link 5-Port Gigabit Easy Smart Switch, Managed, L2, Gigabit Ethernet (10/100/1000)
Specifications
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |

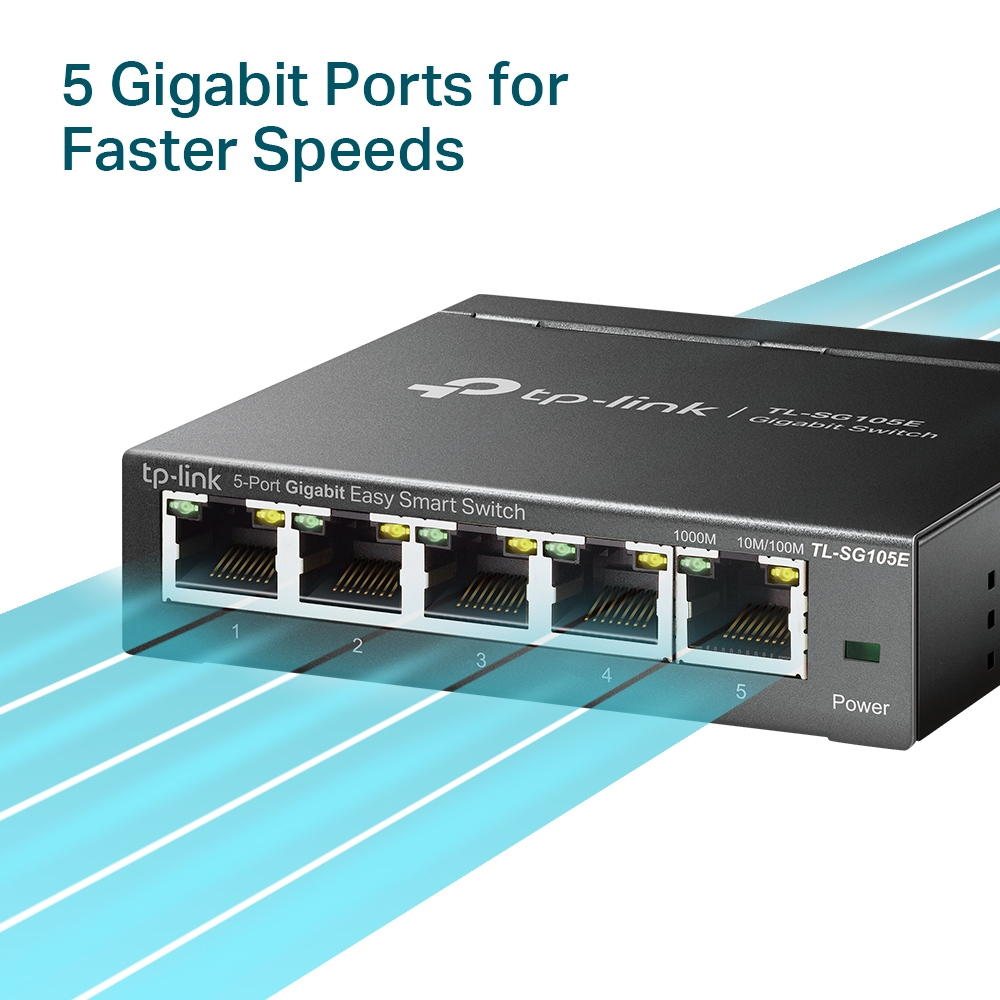

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| IGMP snooping | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux |
| Power source | DC |
| Power supply included | Yes |

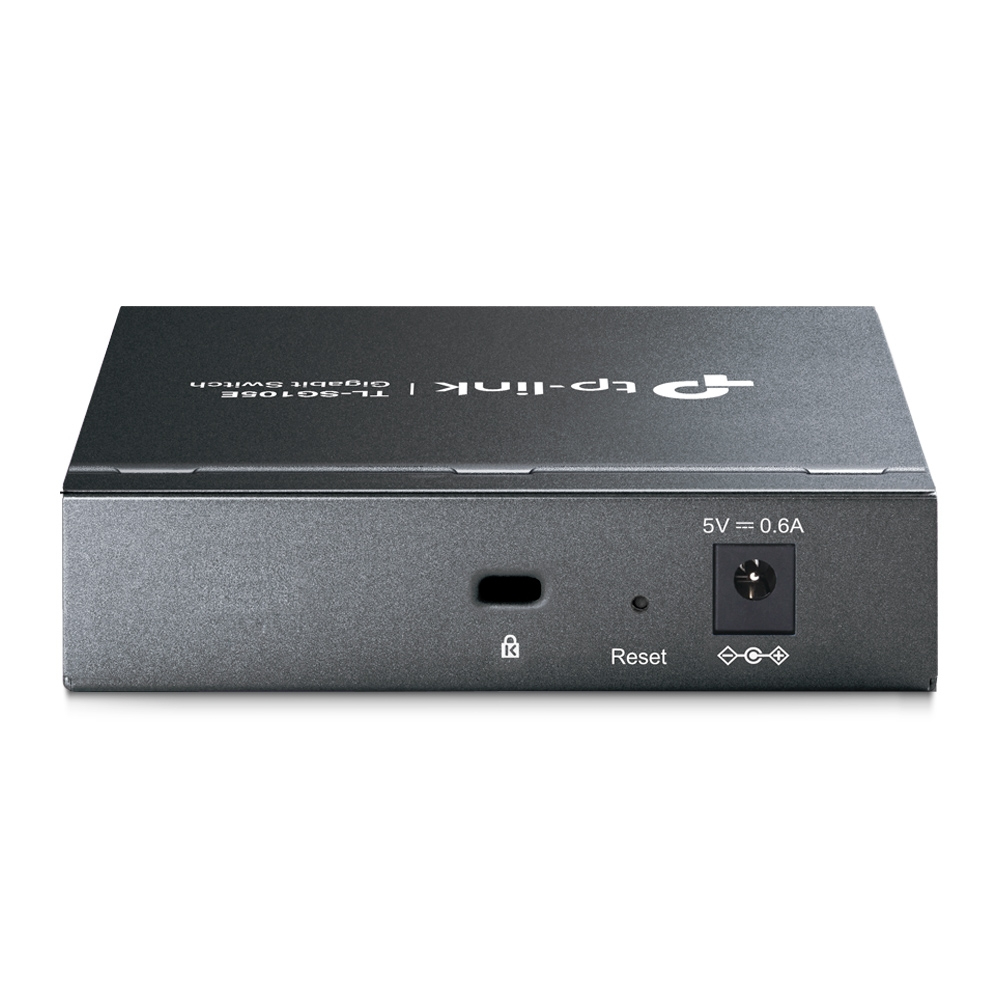

| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 2.82 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 9.07 BTU/h |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Cables included | AC |
| Quick start guide | Yes |
| User guide | Yes |
| Rack mount kit | Yes |
| Package type | Box |
| Package width | 125 mm |
| Package depth | 128 mm |
| Package height | 92 mm |
| Package weight | 449 g |
| Certification | FCC, CE, RoHS |
