TP-LINK Technologies
TP-Link TL-SM311LM SFP (mini-GBIC) transceiver modul Gigabit Ethernet
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

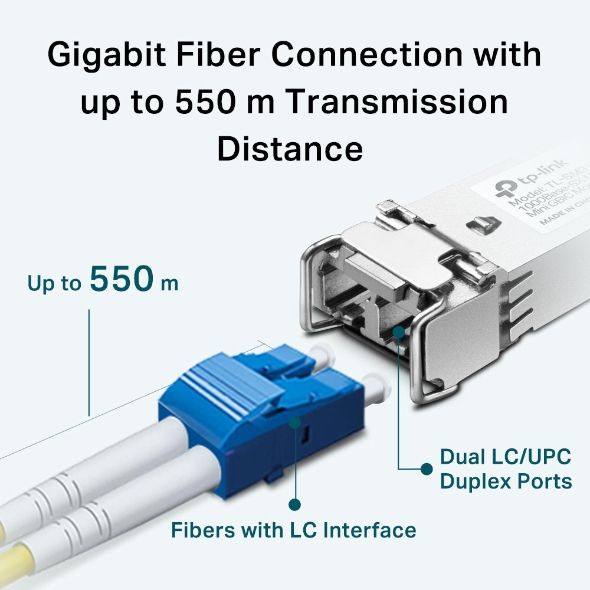

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm, Fiber optic, 1250 Mbit/s, mini-GBIC/SFP, LC (UPC), 50/125,62.5/125 µm, 550 m
Specifikationer
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Product colour | Metallic |
| Input voltage | 3.3 V |
| Compliance certificates | RoHS |
| Certification | FCC, CE |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Quantity per pack | 1 pc(s) |
| User guide | Yes |
| Package width | 38 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Harmonized System (HS) code | 85369010 |
