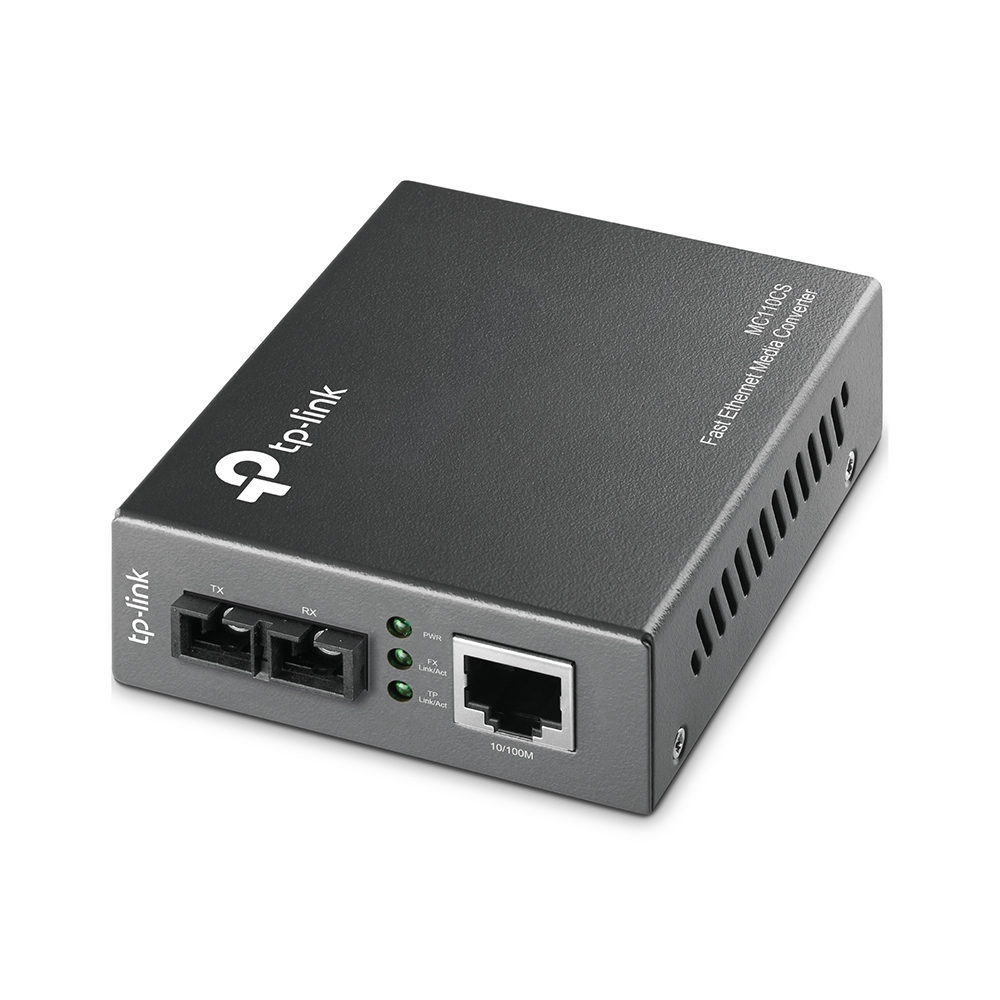

Z TP-Link MC110CS - Medienkonverter RJ45 -> 100Base-FX - SC
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
TP-Link 10/100Mbps Single-Mode Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, UTP 3, 4, 5e, 5
Spezifikationen
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 100BASE-FX |
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 3, 4, 5e, 5 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Internal | No |
| LED indicators | Power, Speed |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power consumption (max) | 1.52 W |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 380 g |
| Certification | FCC, CE |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| I/O ports | 1x 100M SC 1x 100M RJ45 |
| Full duplex | Yes |
