TP-LINK Technologies

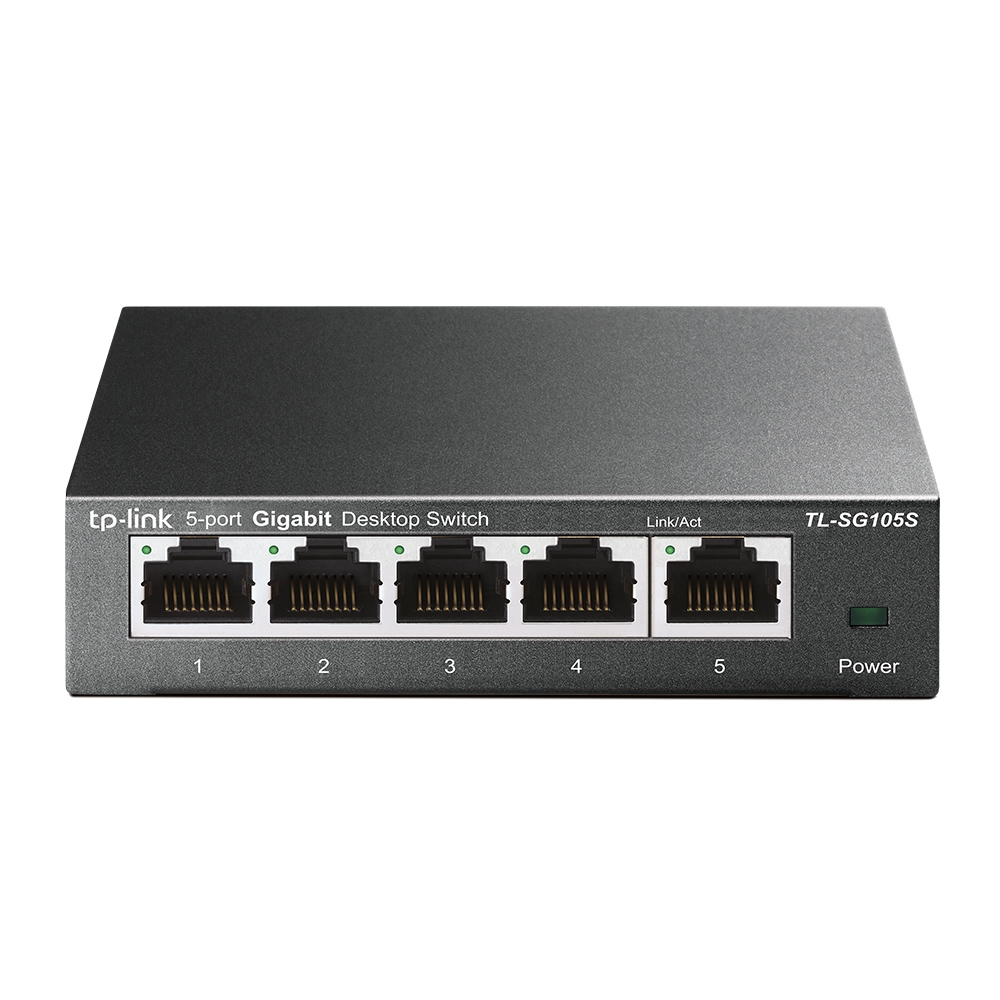

TP-Link TL-SG105S Switch 5-porte Gigabit
Réf. · EAN
Prix à la connexion
prix selon votre accord
En stock
Livraison 1–2 jours ouvrés · commande avant 15h00
Description
TP-Link 5-Port Gigabit Desktop Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Spécifications
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| IGMP snooping | Yes |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Power source | DC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 5 V |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (max) | 2.3 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 7.83 BTU/h |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Cables included | AC |
| User guide | Yes |
| AC adapter included | Yes |
| Package type | Box |
| Rubber feet | Yes |
| Package width | 107 mm |
| Package depth | 192 mm |
| Package height | 107 mm |
| Package weight | 476 g |
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
