APC

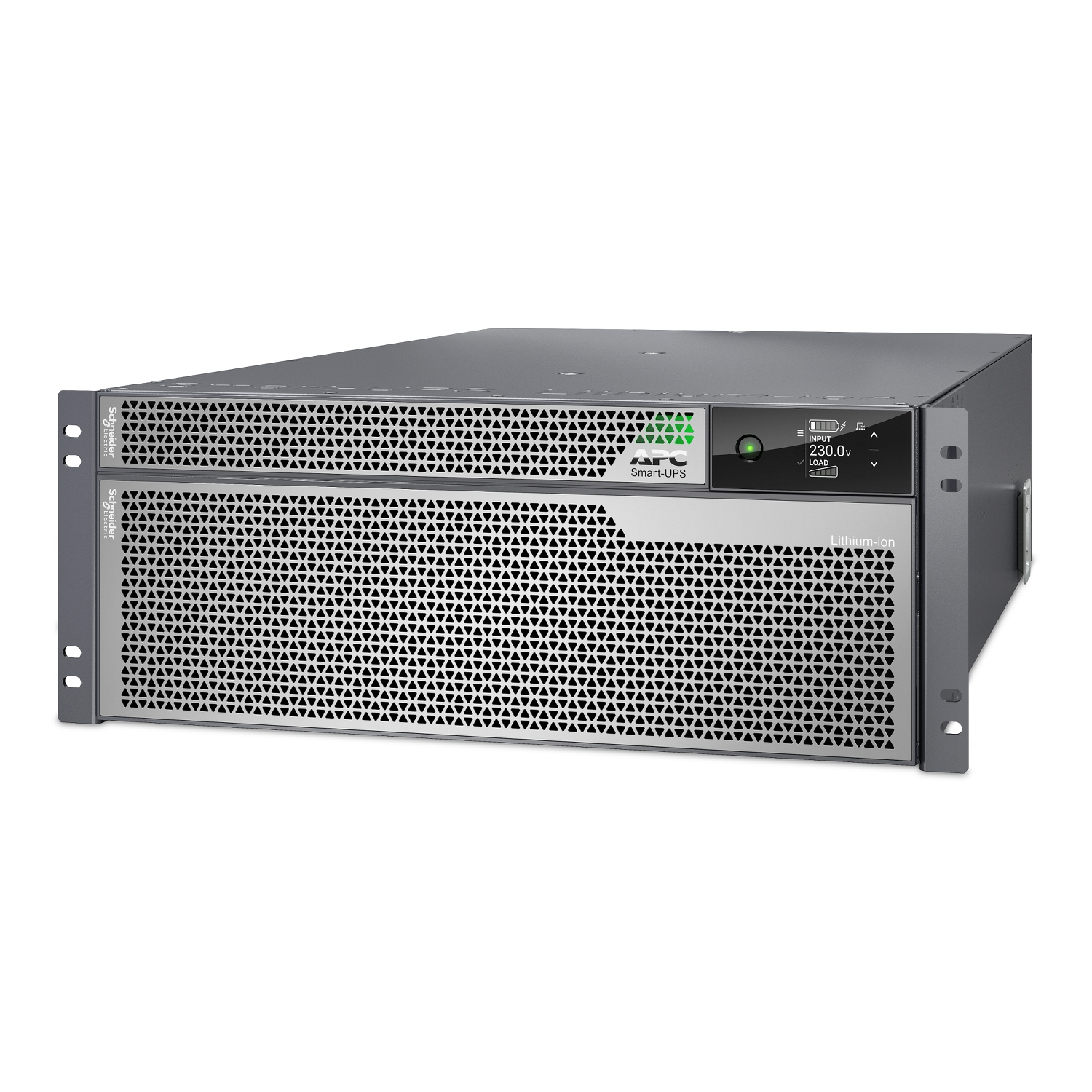

APC Smart-UPS Ultra - UPS - online - 1
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
APC Smart-UPS Ultra On-Line Li-Ion SRTL10KRM4UI, 10KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC, Double-conversion (Online), 10 kVA, 10000 W, Sine, 220 V, 240 V
Specifikationer
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 1410 J |
| Heat dissipation | 1900 BTU/h |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Power source type | AC |
| Detachable power cord | Yes |
| AC outlet types | C13 coupler, C19 coupler, Hardwire |
| Power plug | Hardwire |
| AC outlets quantity | 12 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 180 V |

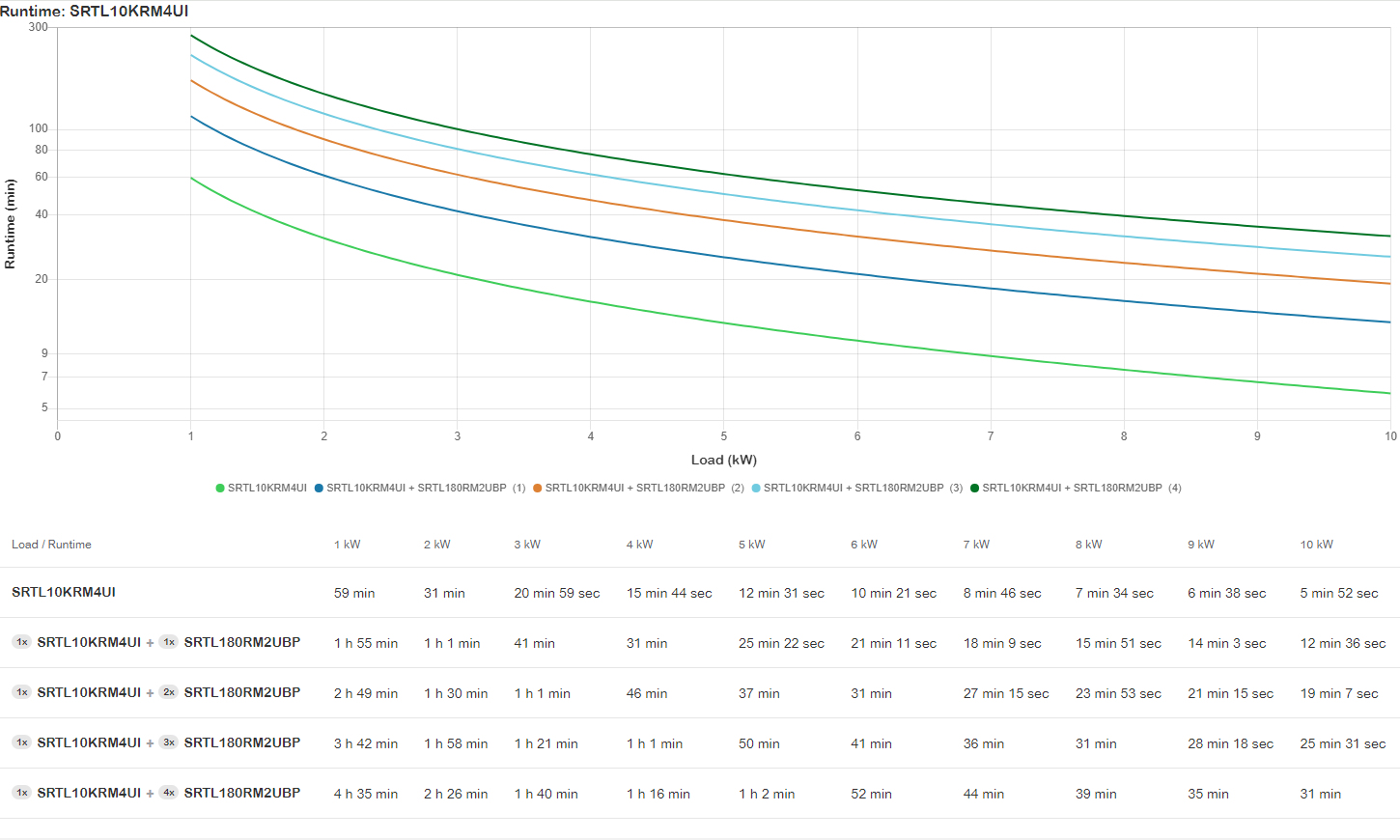

| Typical backup time at full load | 5 min |
| Typical backup time at half load | 11 min |
| Battery life (max) | 10 year(s) |
| Battery recharge time | 1.5 h |
| Form factor | Rackmount/Tower |
| Rack capacity | 4U |
| Product colour | Grey |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15240 m |
| Compliance certificates | CE, REACH, UKCA, VDE |
| Certification | EN/IEC 62040-1 EN/IEC 62040-2 IEC 62040-2 |
| Rack mount kit | Yes |
| Cables included | USB cable |
| Management card included | Yes |
| Manual | Yes |
| Sustainability compliance | Yes |
| Sustainability certificates | Green Premium |
| Width | 432 mm |
| Depth | 832 mm |
| Height | 175 mm |
| Weight | 55 kg |
| Package width | 650 mm |
| Package depth | 1000 mm |
| Package height | 630 mm |
| Package weight | 88.5 kg |
