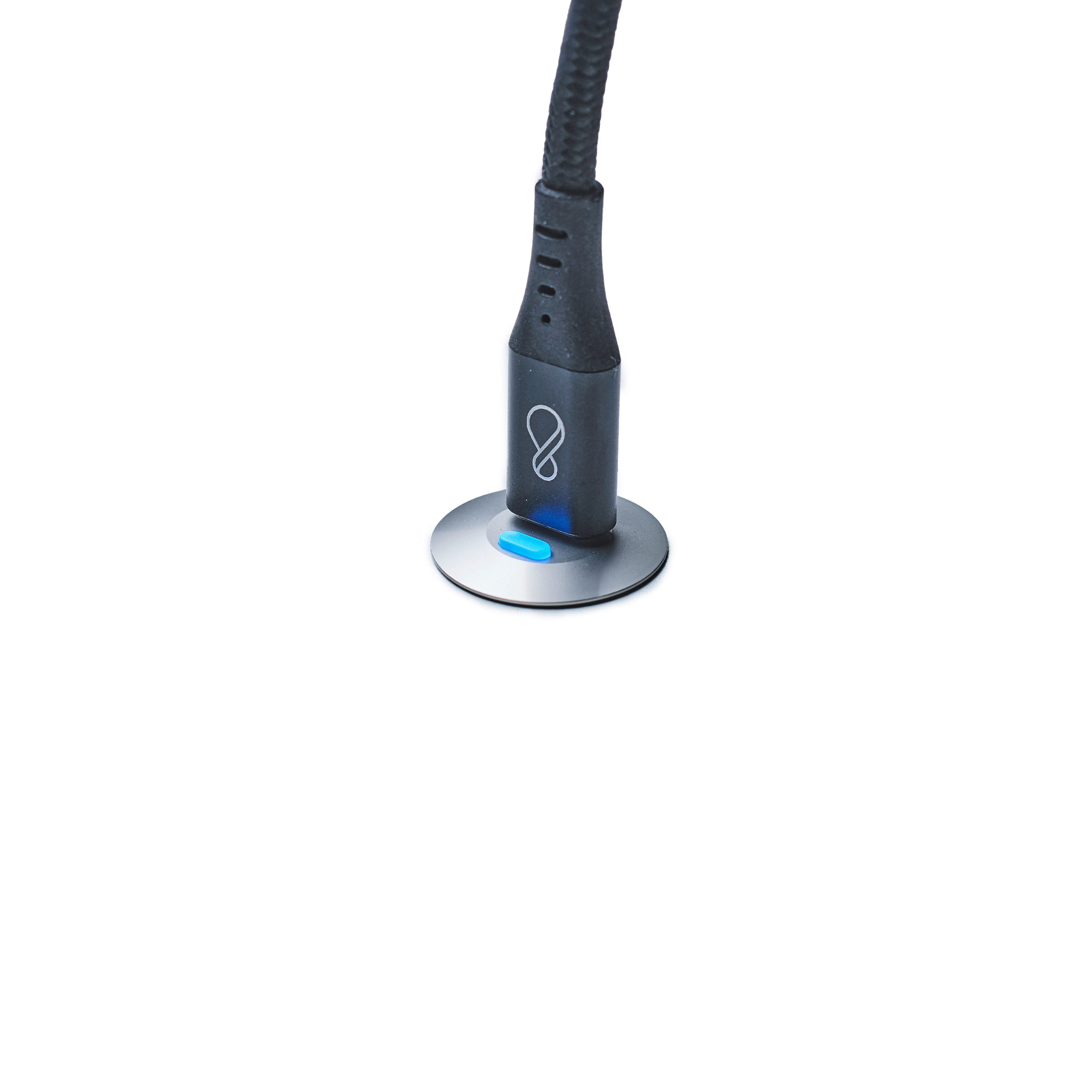

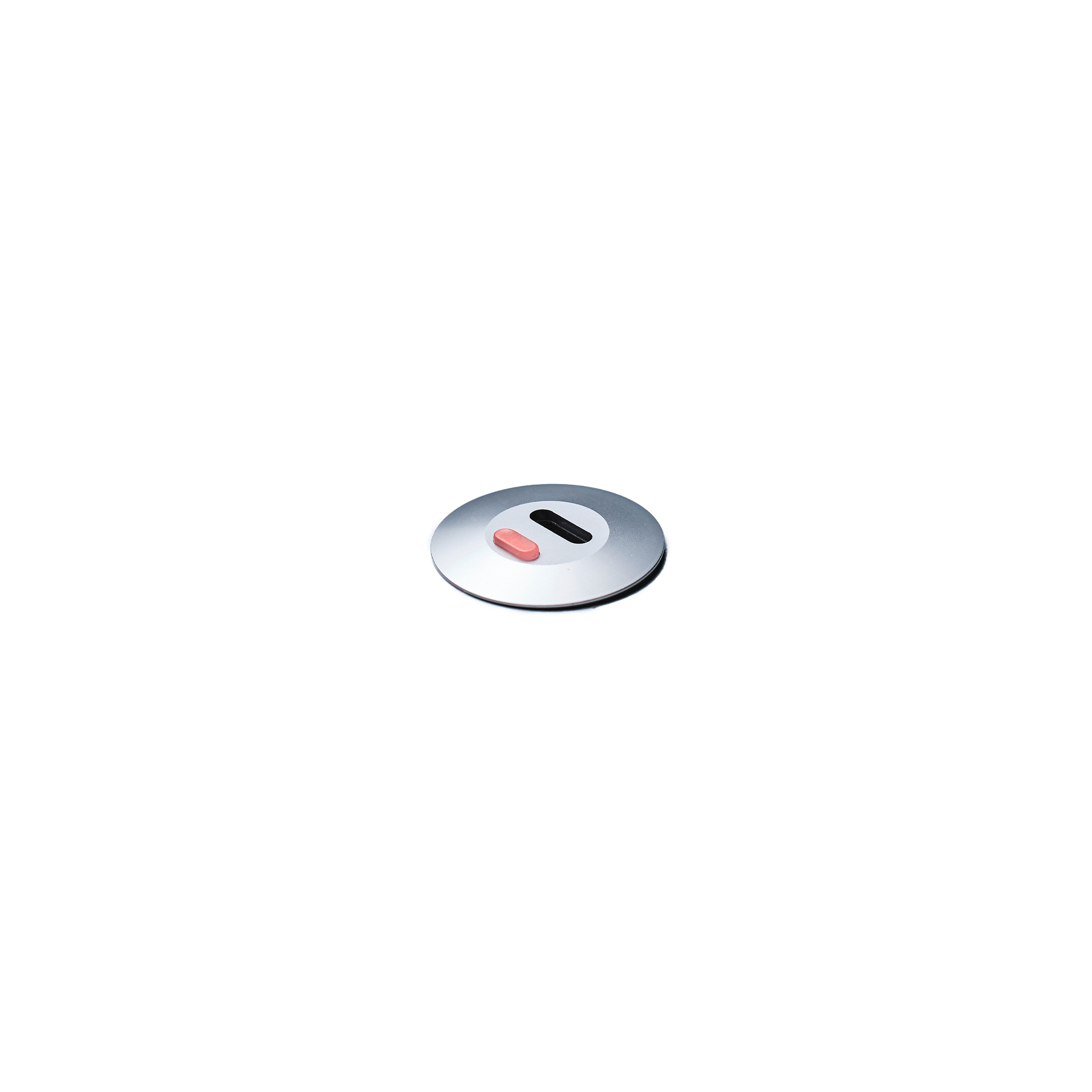

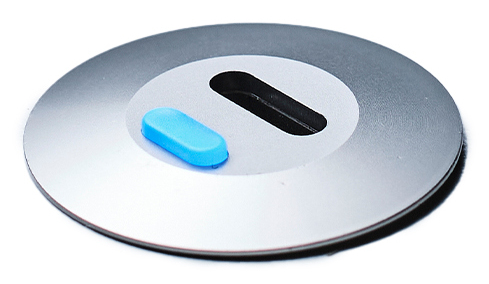

Ochno Socket with RGB Button | USB-C outlet w. locking screw 1m cable | Table, flush installed | Aluminum
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
Ochno O-SWO-100-1, Type C, USB 3.2 Gen 2 (3.1 Gen 2), 10000 Mbit/s, Desktop embedded, Desk, Male
Specifikationer
| Socket type | Type C |
| Sockets quantity | 1 |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Maximum data transfer rate | 10000 Mbit/s |
| Installation type | Desktop embedded |
| Mounting type | Desk |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort (Alt mode) | Yes |
| DisplayPort version | 1.4 |
| Product colour | Aluminium |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Frame | Yes |
| LED indicators | Status |
| Cable length | 1 m |
| Locking screw | Yes |
| USB output voltage | 20 V |
| USB output current | 5 A |
| USB Power Delivery (USB PD) | Yes |
| Input current | 5 A |
| Input voltage | 20 V |
| Compliance certificates | CE, RoHS, REACH |
| Quick start guide | Yes |
| Safety sheet | Yes |
| Hole diameter | 1.8 cm |
| Weight | 73 g |
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 32 mm |
| Package weight | 98 g |
| Package type | Box |
| Master (outer) case width | 210 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 110 mm |
| Master (outer) case gross weight | 2 kg |
| Products per master (outer) case | 18 pc(s) |
