D-Link

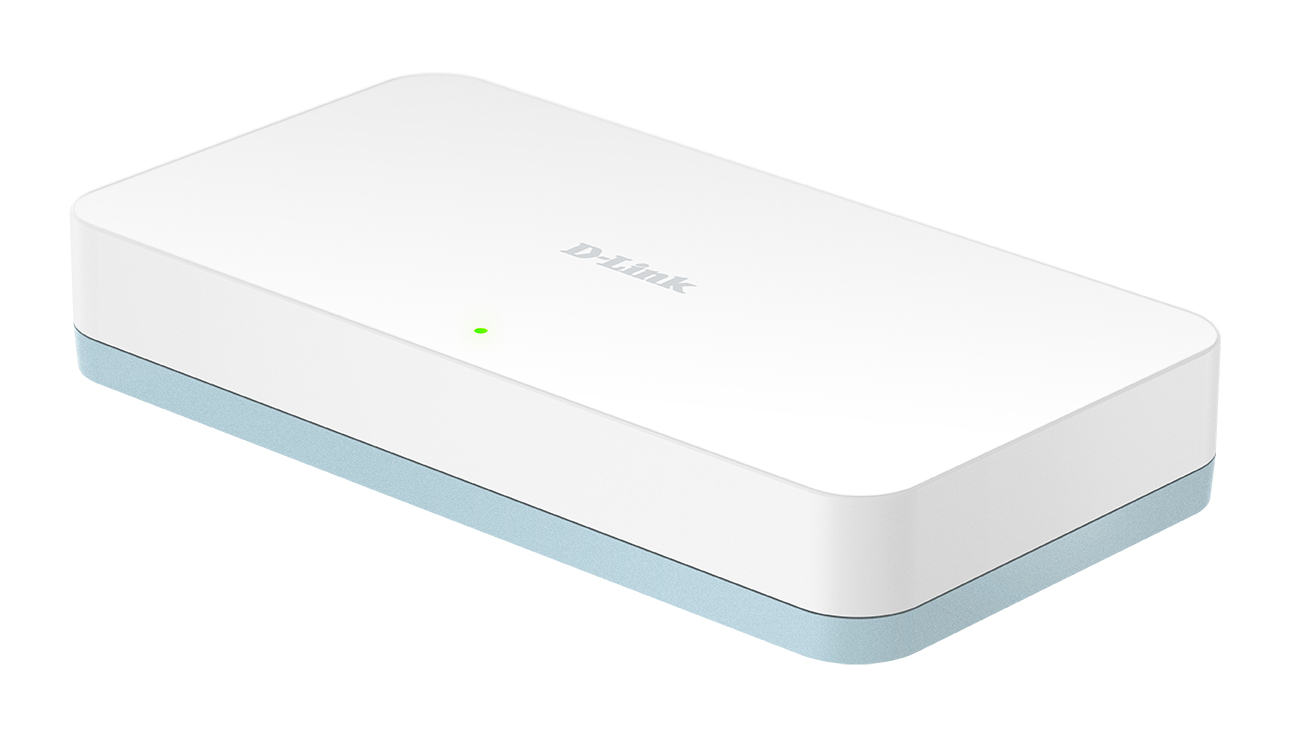

D-Link DGS 1008D - switch - 8 porte
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
D-Link 8-Port Gigabit Unmanaged Desktop Switch, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
Spezifikationen
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Full duplex | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Rack mounting | No |
| Safety | CSA |
| Power consumption (typical) | 4.5 W |
| Power over Ethernet (PoE) | No |
| Dimensions (WxDxH) | 192 x 118 x 30 mm |
| Connectivity technology | Wired |
| I/O ports | 8 x 10/100/1000BASE-T |
| Power requirements | 7.5V 1A |
| Electromagnetic emissions | CE Mark, FCC Class B |
| Networking features | 10BASE-T, 100BASE-TX & 1000BASE- T |
| Power LED | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight | 300 g |
| Package width | 104 mm |
| Package depth | 158 mm |
| Package height | 94 mm |
| Package weight | 280 g |
| Shipping (inner) case height | 19.3 cm |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case length | 49.8 cm |
| Shipping (inner) case net weight | 1.9 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 350.2 kg |
| Master (outer) cases per pallet (air) | 100 pc(s) |
| Products per pallet (air) | 1000 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.06 m |
| Pallet gross weight (sea) | 350.2 kg |
| Master (outer) cases per pallet (sea) | 100 pc(s) |
| Products per pallet (sea) | 1000 pc(s) |
| Pallet height (sea) | 2.06 m |
| Shipping (inner) case gross weight | 3.32 kg |
| Harmonized System (HS) code | 85176990 |
