D-Link

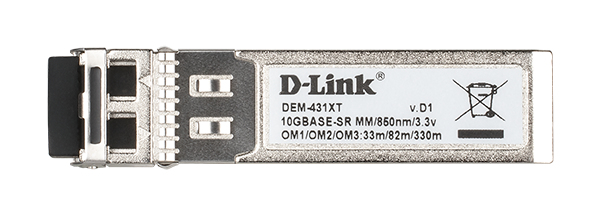

D-Link DEM 431XT - SFP+ transceiver mo
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
D-Link 10GBase-SR SFP+ Transceiver, 80/300m, Fiber optic, 10000 Mbit/s, SFP+, LC, 50/125,62.5/125 µm, SR
Spezifikationen
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SR |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -6.5 dBmW |
| Tx power (max) | -1 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | -1 dBmW |
| Link budget | 10.1 dB |
| Networking standards | IEEE 802.3ae |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Product colour | Gold, Metallic |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 3960000 h |
| Maximum voltage | 3.3 V |
| Maximum current | 300 A |
| Compliance certificates | RoHS |
| Safety | UL, TUV, CDRH |
| Certification | CE, FCC, VCCI, C-Tick, MSA |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 14.8 mm |
| Depth | 11.8 mm |
| Height | 56.5 mm |
| Weight | 18 g |
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 272 kg |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Products per pallet (air) | 3000 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 272 kg |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85369010 |
