D-Link
D-Link DGS 108 Switch 8-porte Gigabit
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

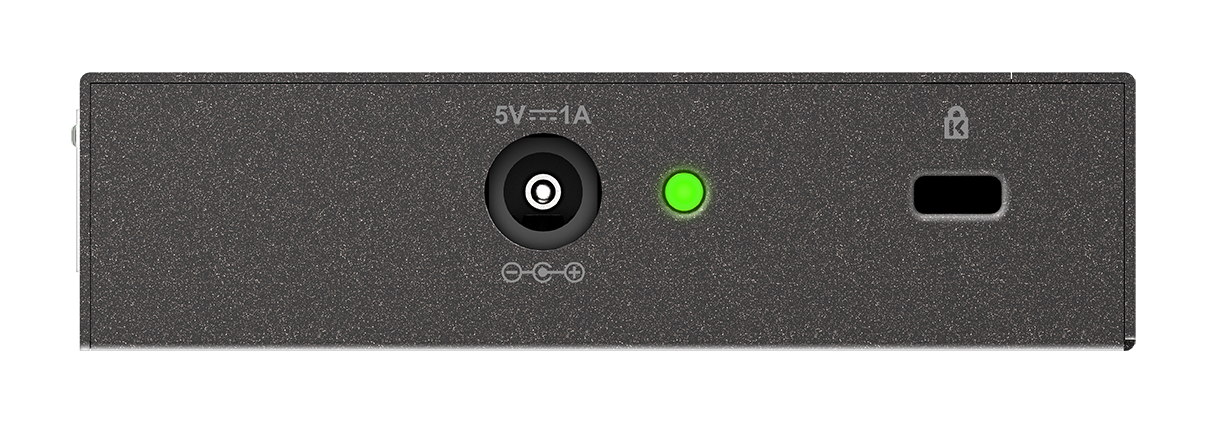

D-Link DGS-108, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
Specifikationer
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| MAC address auto-learning supported | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.192 MB |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Multicast support | Yes |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Mean time between failures (MTBF) | 1467882 h |
| Power source | DC |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 2.8 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 138.7 mm |
| Depth | 85 mm |
| Height | 22.4 mm |
| Weight | 270 g |
| Shipping (inner) case height | 44.3 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case net weight | 7.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 398.9 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 480 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 196.7 cm |
| Pallet gross weight (sea) | 398.9 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Pallet height (sea) | 196.7 cm |
| Shipping (inner) case gross weight | 7.79 kg |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
