D-Link

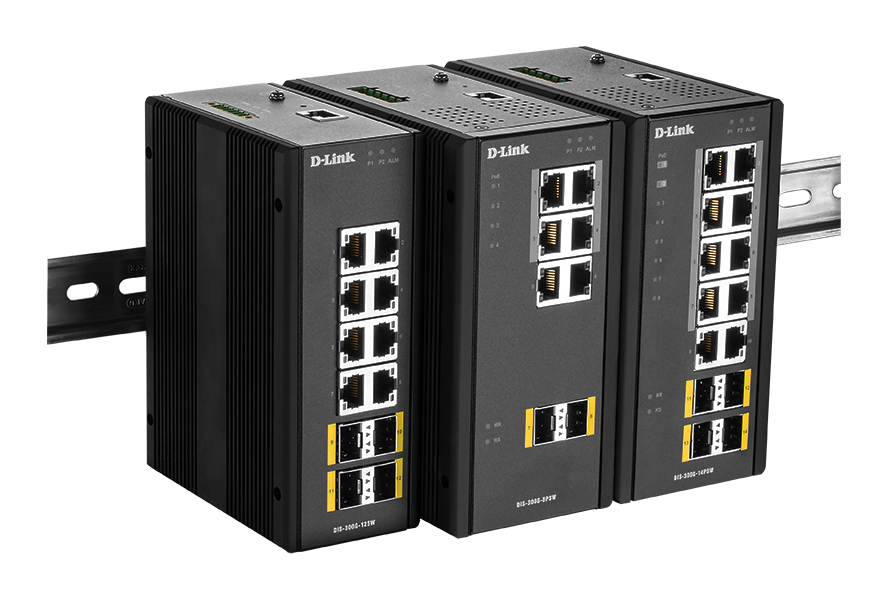

D-Link DIS 300G-12SW - switch - 8 port
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Specifikationer
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
| MIB support | RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 1024 |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Security algorithms | HTTPS, SNMP, SNMPv3, SSH |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | LAN, Status |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Electromagnetic compatibility | FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6 |
| Firmware upgradeable | Yes |
| DC input voltage | 12 - 58 V |
| Power consumption (max) | 17 W |
| Power protection features | Over current, Reverse polarity |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 61 mm |
| Depth | 154 mm |
| Height | 109 mm |
| Weight | 1.09 kg |
| Package width | 195 mm |
| Package depth | 242 mm |
| Package height | 118 mm |
| Package weight | 1.53 kg |
| Shipping (inner) case height | 27 cm |
| Shipping (inner) case width | 41 cm |
| Shipping (inner) case length | 60 cm |
| Shipping (inner) case net weight | 15.3 kg |
| Products per shipping (inner) case | 10 pc(s) |
