D-Link

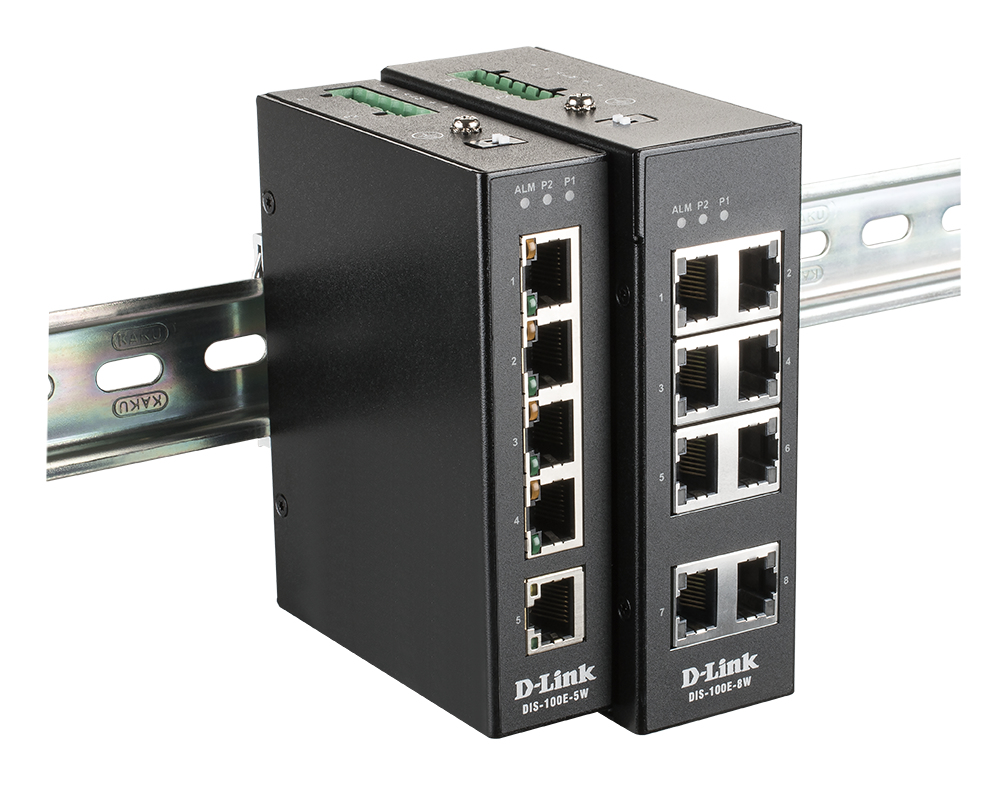

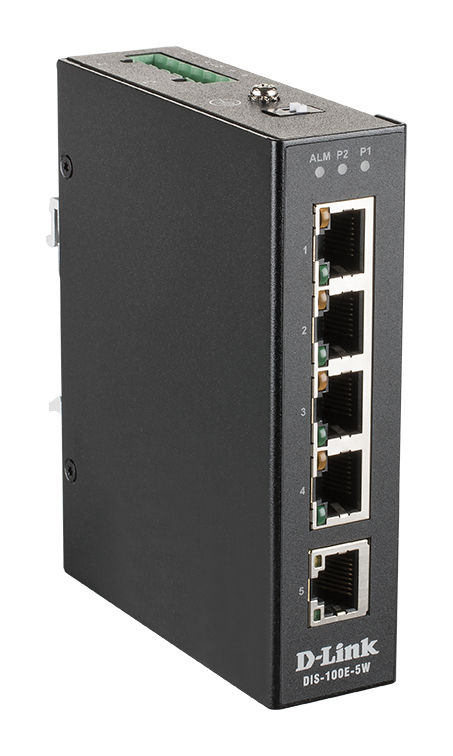

D-Link DIS 100E-5W - switch - 5 porte
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable
Specifikationer
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Relay outputs | 1 |
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 219000 h |
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 0.95 W |
| Power consumption (max) | 1.56 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 29.1 mm |
| Depth | 89.4 mm |
| Height | 109.2 mm |
| Weight | 320 g |
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| Package weight | 488 g |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case width | 30.5 cm |
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case net weight | 5.78 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 226.4 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 135 cm |
| Pallet gross weight (sea) | 330.7 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 195 cm |
| Shipping (inner) case gross weight | 5.79 kg |
| Certification | UL 60950‑1 CE FCC |
| Harmonized System (HS) code | 85176990 |
