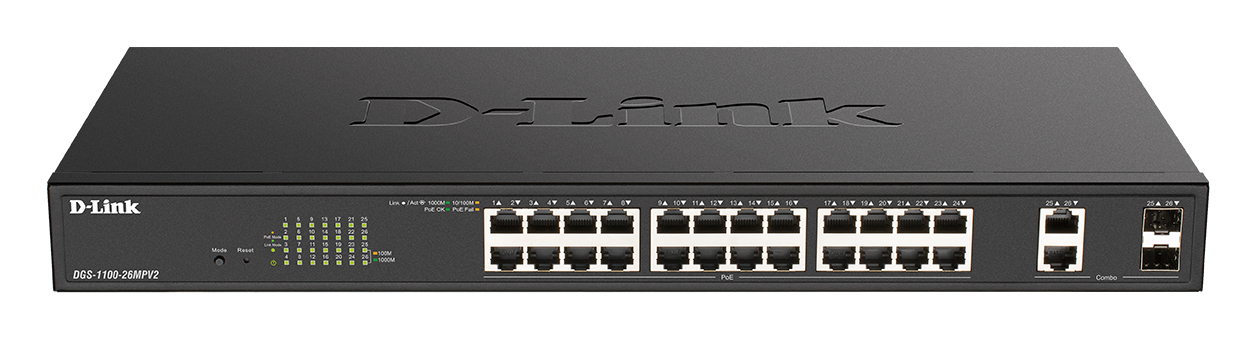

D-Link DGS 1100-26MPV2 - switch - 26 p
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description
D-Link DGS-1100-26MPV2/E, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Specifications
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Copper ethernet cabling technology | 10GBASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.69 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| Multicast support | Yes |
| IPv4 multicast entries | 1 |
| IPv6 multicast entries | 1 |
| Number of multicast groups filtered | 1 |
| IPv4 & IPv6 features | IPv4 FIB |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Flash memory | 16 MB |
| Noise level | 50.5 dB |
| Fanless | Yes |
| MTBF (PoE) | 317.777 h |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 454.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 287 BTU/h |
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
