D-Link
28-Port Gigabit Ethernet PoE++ Surveil
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

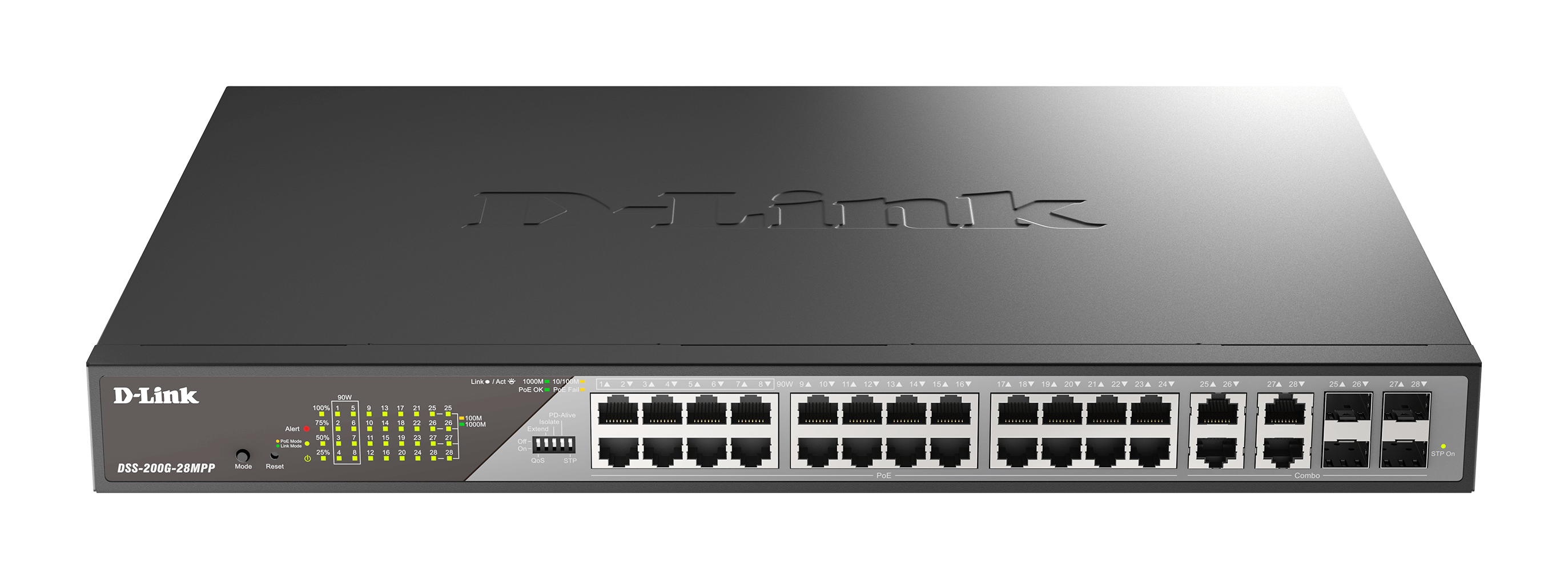

D-Link DSS-200G-28MPP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), 1U
Specifikationer
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| MIB support | • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention • RFC2233 Interface Group MIB • RFC2665 Ether-like MIB • RFC4363 IEEE 802.1p MIB • ZoneDefense MIB • Private MIB • RFC951 BootP client • RFC1542 BootP/DHCP client • RFC2236 IGMP Snooping |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.67 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Packet buffer memory | 4.1 MB |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Multicast features | Controllable multicast |
| Form factor | 1U |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Activity, Alarm, Link, Power, Speed |
| Number of fans | 2 fan(s) |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Noise level | 54 dB |
| Fanless | No |
| Mean time between failures (MTBF) | 289075 h |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6.4 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 579.3 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 518 W |
