Lenovo
Brainboxes US-101 - seriel adapter - U
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse

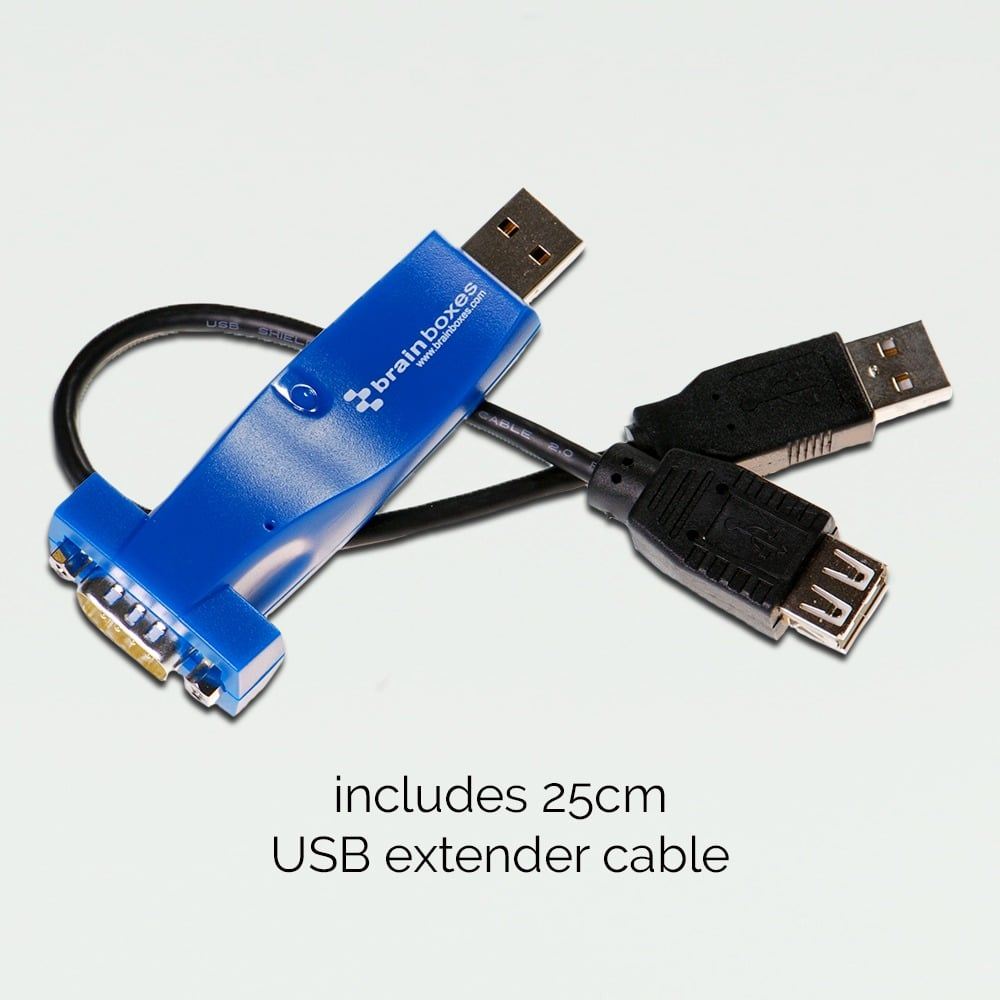

Brainboxes USB 1 Port RS232 1MBaud, USB A, DB9, 0.25 m, Blue
Specifikationer
| Connector 1 | USB A |
| Connector 2 | DB9 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | 2.0 |
| Connector(s) | DB9 |
| Cable length | 0.25 m |
| Product colour | Blue |
| Data transfer rate | 0.48 Gbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 256 B |
| Compatible operating systems | Win Vista, XP |
| Operating temperature (T-T) | -30 - 80 °C |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Certification | RoHS, CE, FCC |
| Width | 35 mm |
| Depth | 89 mm |
| Height | 20 mm |
| Weight | 23 g |
| Cables included | USB Type-A |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 151 g |
| Host interface | USB |
| Ports quantity | 1 |
| Mac compatibility | No |
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 4A994 |
| Harmonized System (HS) code | 84718 |
