APC

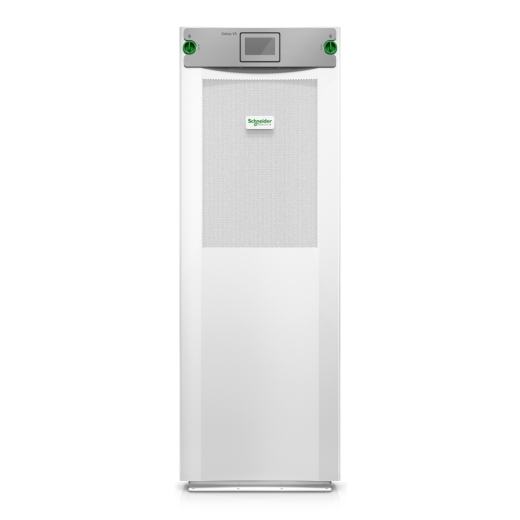

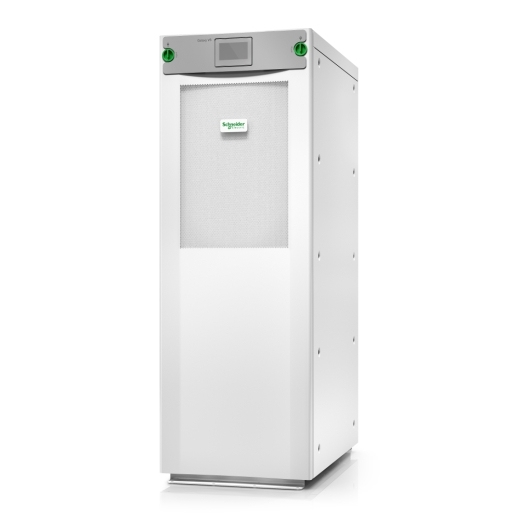

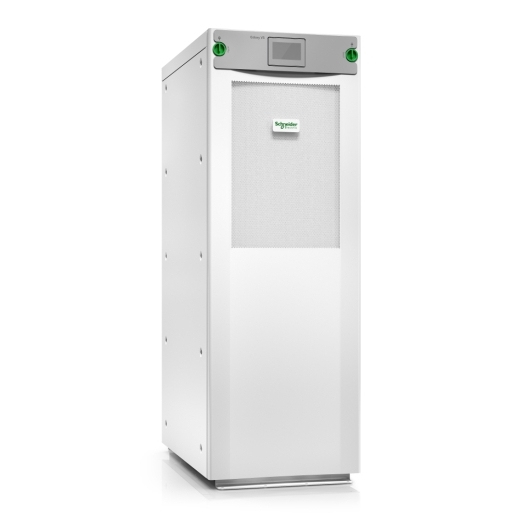

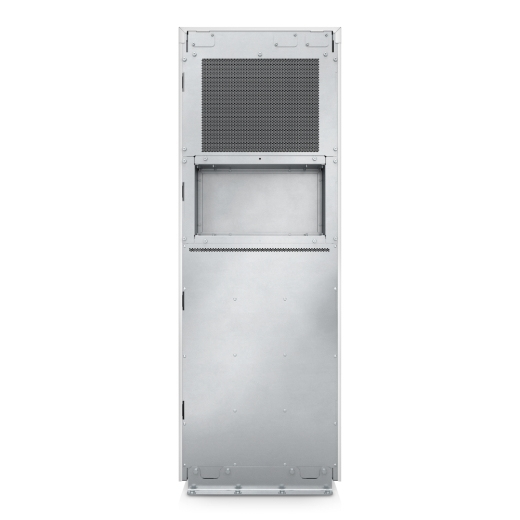

APC Galaxy VS USV 30kW 400V
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8, Double-conversion (Online), 30 kVA, 30000 W, Sine, 340 V, 460 V
Specifikationer
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 54 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1005.8 m |
| Non-operating altitude | 0 - 3048 m |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Management card included | Yes |
| Manual | Yes |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 200 kg |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 200 kg |
| Harmonized System (HS) code | 85078000 |
