Startseite · Monitore & Projektoren · LG 86TR3DQ-B Signage Display IDB IR Touch 86inch UHD 400cd/m2 16/7 Android 14EDLA Speaker wifi 8G/64G
LG

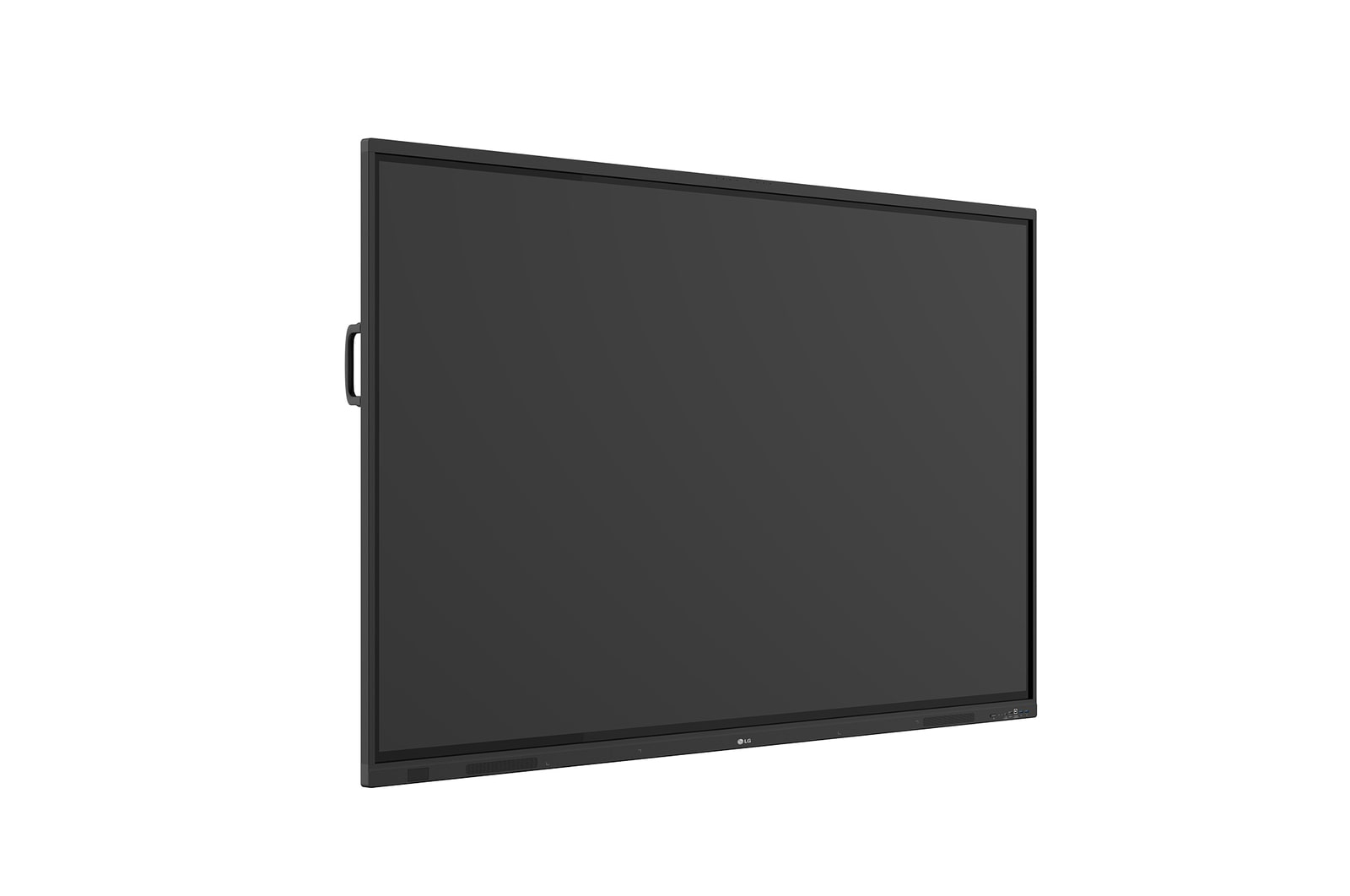

LG 86TR3DQ-B Signage Display IDB IR Touch 86inch UHD 400cd/m2 16/7 Android 14EDLA Speaker wifi 8G/64G
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
LG CreateBoard Standard, 2.18 m (86"), 400 cd/m², 1.07 billion colours, 3840 x 2160 pixels, 4K Ultra HD, IPS
Spezifikationen
| Display diagonal | 2.18 m (86") |
| Display brightness | 400 cd/m² |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Response time | 8 ms |
| Maximum refresh rate | 60 Hz |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 50 |
| Touch system response time | 5 ms |
| Touch object size (min) | 2 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Colour gamut | 72% |
| Screen glass thickness | 3.2 mm |
| Handles quantity | 1 |
| Operating system installed | Android |
| Operating system version | 14 |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex A73 + ARM Cortex A53 |
| Maximum internal memory | 64 GB |
| RAM capacity | 8 GB |
| Graphics card family | ARM |
| Graphics card | Mali-G52 MP8 |
| Built-in speaker(s) | Yes |
| Speaker power | 40 W |
| Built-in subwoofer | Yes |
| Subwoofer RMS power | 20 W |
| Built-in projector | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 1 |
| USB connector type | Micro-USB A, USB Type-C |
| HDMI ports quantity | 3 |
| USB Type-C ports quantity | 2 |
| HDMI output ports quantity | 1 |
| RGB ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| RS-232 ports | 1 |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 50000 h |
