Forside · Stationære · Shuttle XPC Nano NA10H7 R7-8845HS 0GB No-OS
Shuttle Computer Group

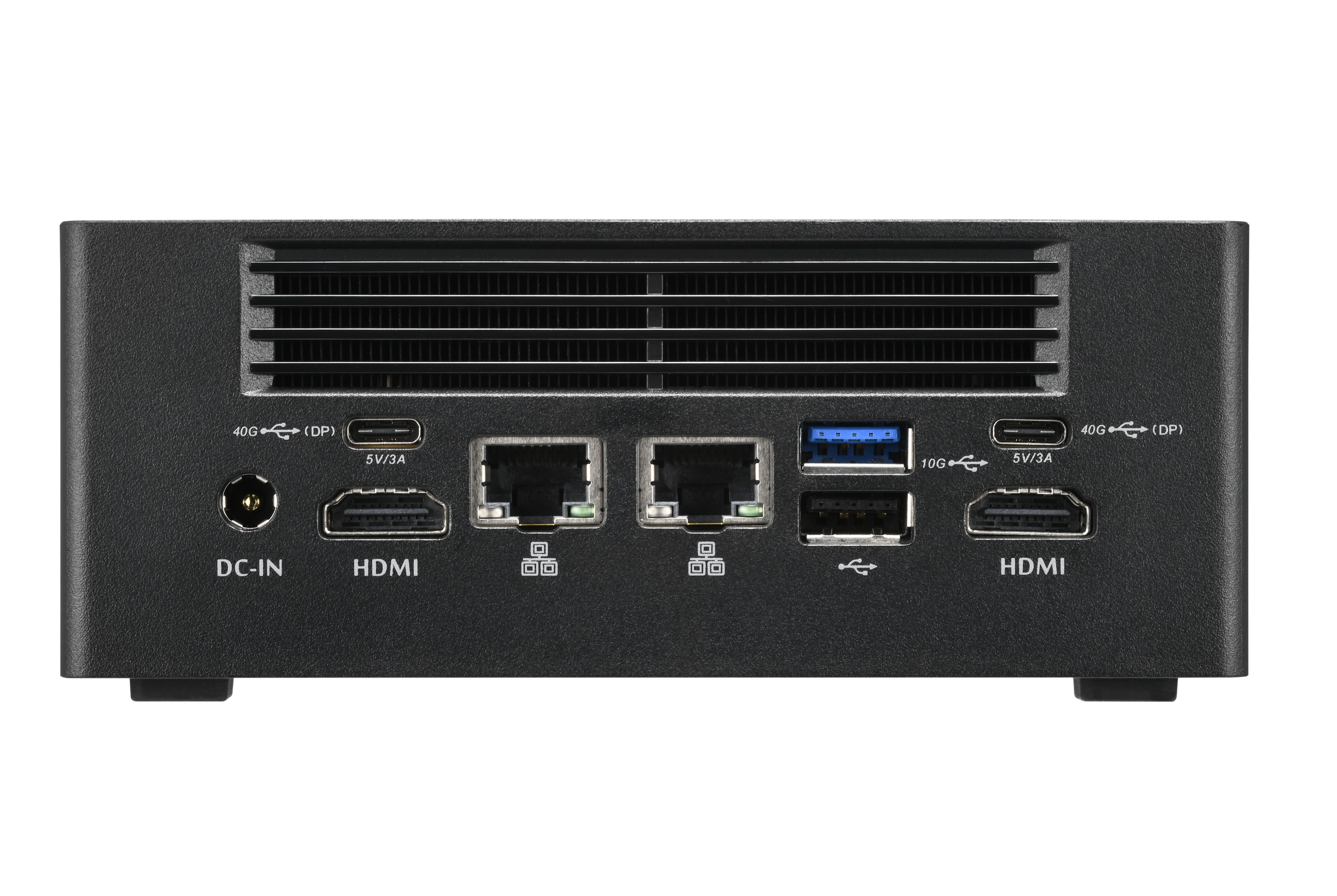

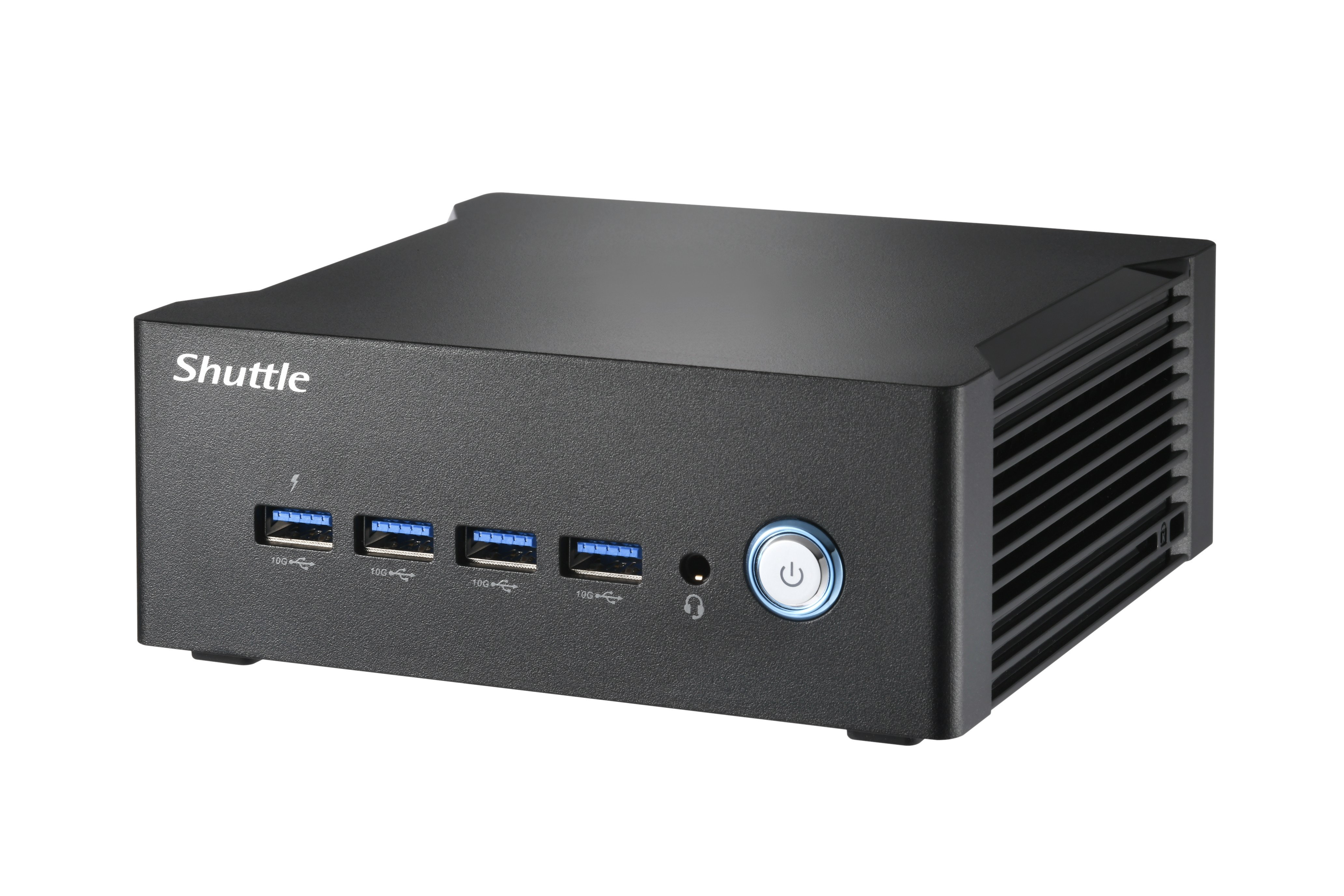

Shuttle XPC Nano NA10H7 R7-8845HS 0GB No-OS
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Passer til jeres setup
Vi klargør maskinen med jeres Microsoft 365-profil, Intune-politikker og printere, før den sendes. I skal bare logge ind.
Skal udstyret sættes op på plads, tilføjer vi gerne en tekniker i kurven — sig til, så retter vi ordren inden den pakkes.
Beskrivelse
Shuttle Nano PC NA10H7, AMD Ryzen™ 7-8845HS APU, Radeon780M , 2xHDMI, 2xUSB-C 4.0(DP), 2x2.5Gbit LAN, 24/7 permanent operation, incl. VESA, 1L sized PC, Mini PC barebone, DDR5-SDRAM, PCI Express, Ethernet LAN, 120 W
Specifikationer
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 8000 Series |
| Processor model | 8845HS |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.8 GHz |
| Built-in processor | Yes |
| L2 cache | 8 MB |
| L3 cache | 16 MB |
| Thermal Design Power (TDP) | 45 W |
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Non-ECC | Yes |
| Storage drives installed | No |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| NVMe | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon 780M |
| Number of displays supported | 4 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC269 |
| Built-in speaker(s) | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8125B |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB4 Gen 2x2 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Chassis type | 1L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | Power |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Harmonized System (HS) code | 84714900 |
