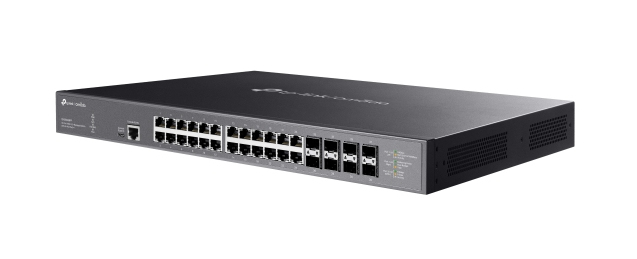

TP-LINK SX3832MPP Omada 32-Port 10GE L2+ Managed Switch 24x 10G RJ45 PoE++ Ports 8x 10G SFP+ Slots
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, DIN rail
Spezifikationen
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Unified static configuration | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| 10G Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 8 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Address Resolution Protocol (ARP) entries (max) | 510 |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Static port security | Yes |
| Authentication | Guest VLAN |
| DoS attack prevention | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| CPU defense | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Device link detection protocol (DLDP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | DIN rail |
| Product colour | Black |
