Startseite · Netzwerk · TP-Link Omada ES220GMP V1.6 Switch 20-porte Gigabit Ethernet PoE+
TP-LINK Technologies

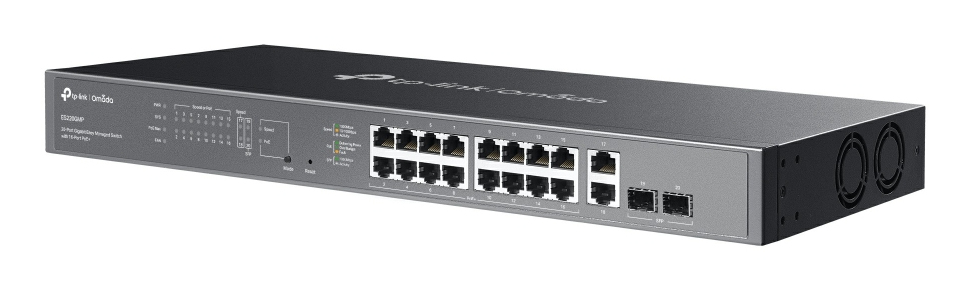

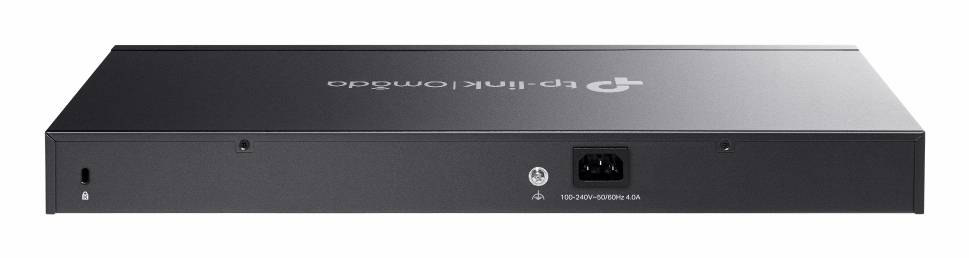

TP-Link Omada ES220GMP V1.6 Switch 20-porte Gigabit Ethernet PoE+
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung
TP-Link Omada ES220GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Spezifikationen
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Unified static configuration | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.76 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Flash memory | 64 MB |
| Noise level | 41.5 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 310550.7 h |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 289.7 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 984.88 BTU/h |
